MAJ MTI10

Name: MAJ MTI10 - Communica [Part No: MAJ MTI10]
Brand: Major Tech
SKU: MAJ MTI10
Price: 5895 ZAR
Availability: InStock

SKU: MAJ MTI10

BRAND: Major Tech

In Stock
R 6,779.25_{(inc VAT)}
R 5,895.00_{(ex VAT)}

Collections: New Arrivals, Test & Measurement

Type: Thermal Imagers

Category: New, Thermal Imagers

Thermal Imager -20°C~550°C, 2.0” LCD DISPLAY 240x120 Pixel, 25Hz Image Freq, Field of View:50°x50°, IR Resolution:96x96, USB-Type C, Thermal Sensitivity:<0.05°C @ +30°C (86°F)/50mK, 234x75x100mm, 500g

96 x 96 Pixels Thermal Imager

Overview

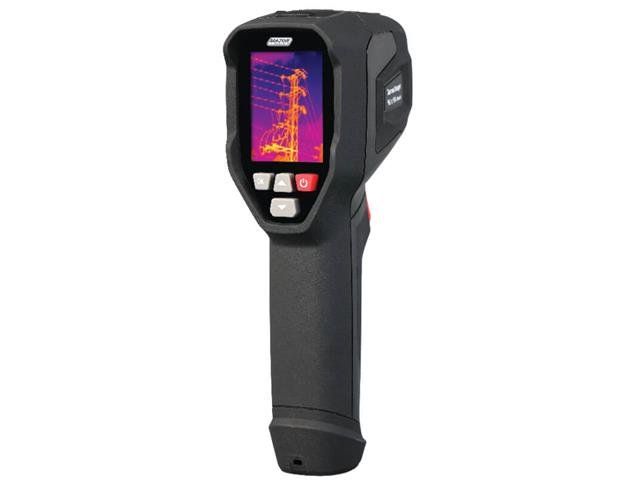

The MTi10 Thermal Imager is a compact, entry-level device ideal for electricians requiring fast and accurate thermal diagnostics. With a 96 x 96 pixel sensor at 25Hz, this focus-free camera makes hot spot detection effortless. The Type-C USB port allows for easy transfer of thermal data to a PC, where it can be analysed and emailed to reduce downtime. Live imaging is also supported when connected to a PC. Features include adjustable emissivity, a temperature range of -20°C to 550°C, centre spot temperature and hot/cold alarms.

Features

96 x 96 Pixel Thermal Detector
25Hz Image Frequency
Center Spot Temperature
2.0” bright LCD display, 240 x 120 Pixel
Colour Palettes include Iron, Rainbow, Grey, Grey Inverted, Brown,
Blue-Red, Hot-Cold, Feather
Data transfer between camera and PC and Live video between
camera and PC via USB
Rugged and industrial design casing
Easy to use functions

Specifications

Function:	Range:
Imaging and Optical Data:
IR Resolution	96 x 96 Pixel
Field Of View	50° x 50°
Spatial Resolution	8.89mrad
Thermal Sensitivity	<0.05°C at +30°C (86°F) / 50mK
Image Frequency	25Hz
Focus	Focus Free
Image Presentation:
Display	2.0” LCD, 240 x 120
Image Modes	IR Image
Colour Palette	Iron, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, Feather
Measurements:
Object Temperature Range	-20°C to 550°C (-4°F to 1022°F)
Object Temperature Accuracy	±2°C (3.6°F) or ±2% of reading
Measurement Analysis:
Spot	Centre Spot
Automatic Hot/Cold Detection	Auto Hot or Cold markers
Measurement Corrections	Emissivity, Reflected Temperature
Storage:
Storage Media	8GB Micro SD Card, 3.5GB Internal EMMC
Video Storage Format	Standard MPEG-4 encode, 240x320@30fps, on memory card, > 30 minutes
Video & Image Storage Mode	IR images
Image Storage Format	Standard JPEG or HIR files including measurement data, on memory card > 6000 pictures
Image Analysis	Internal Image analyses tools, Complete function
Data Communication Interfaces:
Interfaces	USB-Type C
USB	Data transfer between camera and PC. Live video between camera and PC
Size	234 x 75 x 100mm
Weight	500g

Downloads

User Manual - MAJ MTI10

Additional Information

Device	Thermal Imager
Type	96 x 96 Pixels
