Apprentice Test Kit - Includes MT720 400A AC Clamp Meter, MT500 Analogue Insulation Tester, MT310 ELCB Tester, MT403 IP67 1000V NVC Detector, MT100 Continuity & Bell Tester, MTKBAG Heavy Duty Meter Case
Overview

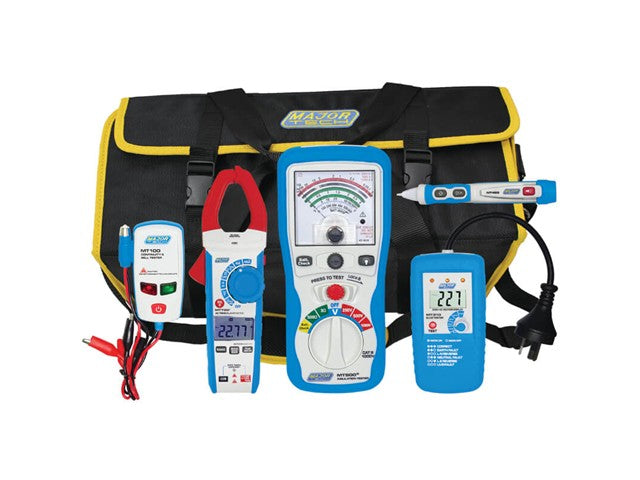

The MTK10 is an Apprentice Test Kit which includes a clamp meter, an insulation tester, an ELCB tester, a non-contact detector and a continuity & bell tester in a heavy duty meter case.
Specifications
Apprentice Test Kit Includes :
MT720– 400A AC Clamp Meter
CAT III 600V and CAT II 1000V
4000 count backlit LCD display
AC and DC Voltage 1000V
AC Current 400A
Resistance 40Mꭥ
Frequency 100kHz
Capacitance 99.99mF
Temperate -20 to 1000˚C
Duty Cycle 80%
Ø30mm Cable Clamp size
INRUSH Current Measurements
VFD – Variable Frequency Drive voltage value
NCV – Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test
Peak Mode and Data Hold function
Auto Power Off
MT500 – Analogue Insulation Tester
CAT IV 600V and CAT III 1000V
3 test ranges 250V-500V-1000V
AC Voltage 600V
Resistance 500ꭥ
Live Circuit warning and buzzer
Data Hold function
1mA output current on insulation test
200mA short circuit on continuity range
Automatic discharge after test
Front panel zero adjustment for test lead resistance
Lock down Test Button for continuous use
Hands free strap and magnet supplied as standard accessories
Rubber overmould housing
Illuminated display
MT310 – ELCB Tester
CAT IV 300V and CAT III 600V
Compact, lightweight and easy to use
AC Voltage Measurement 245V
Frequency Response 60Hz
Test Current 35mA
Correct Wiring Indication with neon lights
Operates on 230V systems
AC Voltage measurement on LCD display
Fixed current settings from 10mA to 35mA
Separate test button
Double injection rubber housing
MT403– IP67 1000V NCV Detector
IEC61010-1 CAT IV 1000V
IP67 waterproof and dust proof
AC Voltage 1000V
Frequency 60Hz
Thinner probe tip for working with socket outlets
Green LED means Power on, flashing red LED with beeper means Voltage detected
Two modes, green indicates high voltage mode, Yellow LED 12V Mode
Flash and beep rate increases as the detector gets closer to the voltage.
Power On/Off with silent mode
2m drop-proof
MT100 – Continuity and Bell Tester
Remotely identify and label two wires using flashing remote probes
Distance 3000m (26 Gauge min)
Lightweight and pocket size
MTKBAG – Heavy Duty Meter Case
Optional carrying case to house a range of meters the user needs to carry at any one time
Specially designed by Major Tech to be compact with a shoulder strap
Adjustable compartments for bigger instruments or tools
Pocket for instruction manuals or documentation
Size – 220mm (H) x 450mm (W) x 200mm (D)
Discover the MAJ MTK10 Apprentice Test Kit, your ultimate toolkit for electrical testing. Featuring a 400A AC clamp meter, insulation tester, and ELCB tester, this comprehensive kit ensures accuracy and safety in every project. With a durable case and essential tools, it's perfect for both professionals and apprentices looking to enhance their skills and efficiency.
