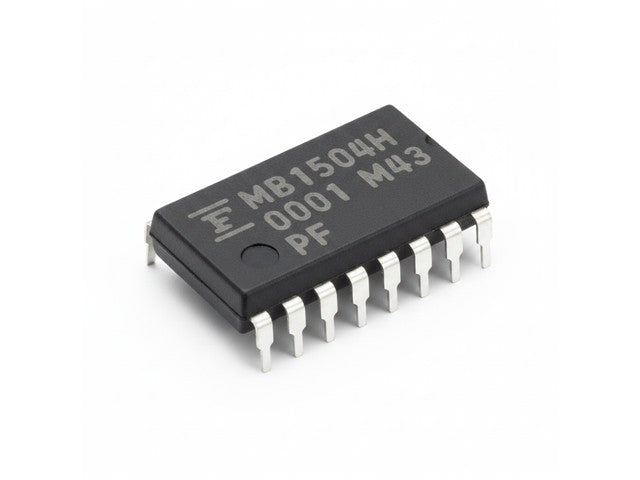

MB1504H

• Device Type: Phase-Locked Loop (PLL) Frequency Synthesizer IC
• Package Type: DIP

General Features

• Single-chip PLL frequency synthesizer
• Designed for:
  • TV tuners
  • FM tuners
  • VCR tuner modules
  • CATV receivers
• Low-power CMOS technology

Electrical Characteristics

• Supply Voltage (VDD):
  • 4.5 V to 5.5 V
  • Typical: 5 V
• Power Consumption:
  • Low-power CMOS operation
• Reference Oscillator Frequency:
  • Typically 4 MHz crystal

PLL Functions

• Programmable frequency divider
• Phase detector
• Reference divider
• Charge pump output
• Lock detection function

Serial Interface

• 3-wire serial bus control:
  • Data (DATA)
  • Clock (CLOCK)
  • Enable (CE)
• Microcontroller-compatible programming

Frequency Range

• Suitable for VHF/UHF tuner applications
• Supports TV and FM local oscillator control
• Frequency range dependent on external prescaler and tuner design

Output Features

• Charge-pump tuning output
• PLL lock control
• Frequency programming capability
• Stable local oscillator control

Package

• Package Type: DIP
• Pin Count: 16 Pins
• Mounting Style: Through-Hole

Operating Temperature

• Commercial Range: 0°C to +70°C
