MBU 1 - Test Plugs & Sockets -

MBU 1 - Test Plugs & Sockets - 930312000 4002044169015

MBU 1

SKU: MBU 1

BRAND: SKS Hirschmann

In Stock
R 27.50_{(inc VAT)}
R 23.91_{(ex VAT)}

Collections: SKS Hirschmann, Test & Measurement

Type: Test Plugs & Sockets

Category: Banana Socket

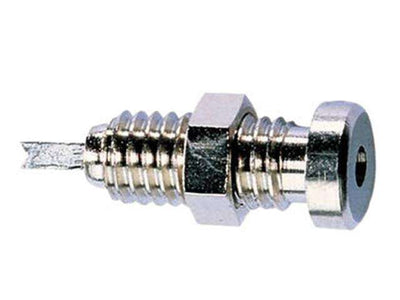

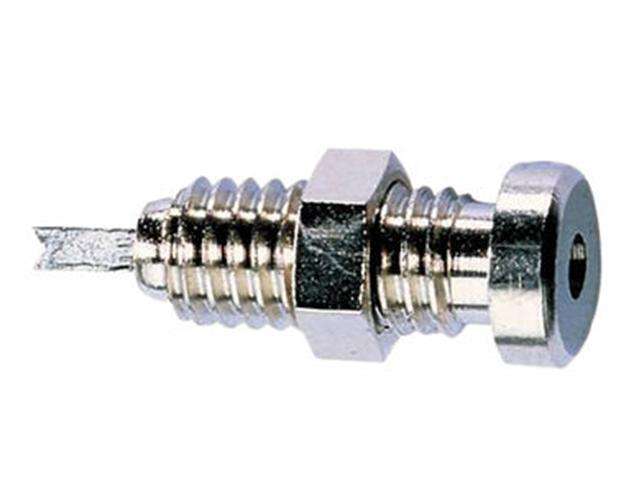

Banana Test Socket 2mm Panel Mount Nickel Plated 6A 30VAC/60VDC (930312000)

Overview

Features

Specification

Technical Data

Measurement Category to IEC 61010 : CAT I
Type of Contact : Spring-Loaded Socket 2 mm
Type of Termination : Solder
Rated Voltage : 30 VAC / 60 VDC

Rated Current

Please consider derating curve! : 6A
Contact Resistance : 6 mOhm

Material

Contact Material : Contact Spring: Copper - Beryllium
Contact Surface Material : Tin
