MC4 T-BRANCH SET

SKU: MC4 T-BRANCH SET

BRAND: Communica

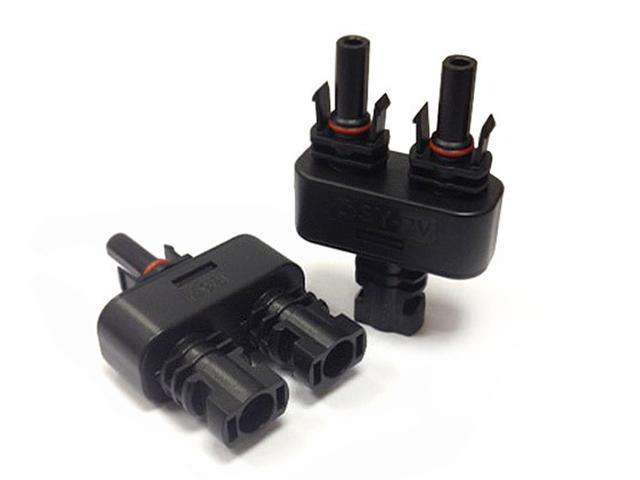

Solar connector T-Banch (2/1) male/female and (1/2) male/female Set. Splits one branch into 2 MC4 legs with IP67-UV Protected

Overview

MC4 T-BRANCH SET are used to connect multiple solar panels or groups of solar panels together in a solar field

Features

  • MC4 Branch Connectors are perfect for combining multiple solar panels together
  • Provides a quick and easy parallel wiring solution for solar panels
  • Compatible with all MC4 solar connectors
  • Designed for outdoor use on solar panel systems: TUV Certified and ROHS Compliant
  • Waterproof and dustproof

Specification

  • Rated Voltage : 1000V DC/ UL600V DC
  • Rated current : 20A-30A
  • Suitable cable cross section : 2.5mm2 ~ 6.0mm2 / 14AWG ~ 10AWG
  • Pin dimension : Ø4.0mm
  • Proof voltage : 6000V AC(1 MIN)/ UL 2200V DC (1Min)
  • Polution degree : 2
  • Protection class : Class 2
  • Contact Material : Copper, Tin plated,PPO
  • Contact Resistance : ≤ 5mΩ
  • Degree of protection : IP 67
  • Withdrawal Force : ≥ 50N
  • Insertion force : ≤ 50N
  • Temprature range : -40°C~ 85°C
  • Flame class : UL94V-0
  • Package include :
    • 1 Pair of MC4 T Branch Connectors 1F2M&1M2F 30A Solar Panel PV DIY New

-->
