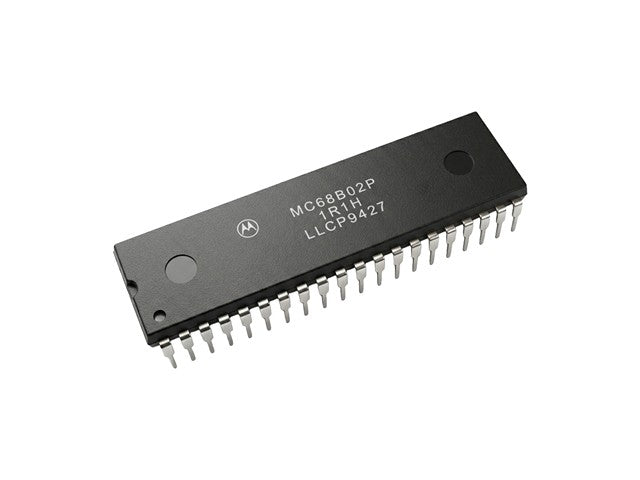

MC68B02P

Name: MC68B02P - Communica [Part No: MC68B02P]
Brand: Communica
SKU: MC68B02P
Price: 84 ZAR
Availability: InStock

SKU: MC68B02P

BRAND: Communica

R 96.60_{(inc VAT)}
R 84.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Processors & Microcontrollers

Category: Microprocessor IC's

8-Bit Microprocessor - On-chip Clock circuit 40Pin dip

Specifications

Family: Motorola M6800 Series
CPU Architecture: 8-Bit MPU
Data Bus Width:
- 8 Bits
Address Bus Width:
- 16 Bits
Maximum Addressable Memory:
- 64 KB
Maximum Clock Frequency:
- 2 MHz (B-speed grade)
Supply Voltage:
- 5 V ±5%
On-Chip RAM:
- 128 Bytes Static RAM
- User-selectable memory mapping
Internal Registers:
- Accumulator A (8-bit)
- Accumulator B (8-bit)
- Index Register X (16-bit)
- Stack Pointer (16-bit)
- Program Counter (16-bit)
- Condition Code Register (CCR)
Instruction Set:
- 72 Instructions
- Multiple Addressing Modes:
  - Immediate
  - Direct
  - Extended
  - Indexed
  - Relative
  - Inherent
  - Accumulator
Interrupts:
- IRQ (Maskable Interrupt)
- NMI (Non-Maskable Interrupt)
- SWI (Software Interrupt)
DMA Support:
- Bus Available (BA)
- Bus Busy (BUSY)
- DMA-compatible bus control

Additional Information

Device

IC

Unlock superior performance with the MC68B02P 8-Bit Microprocessor. Featuring a 40-pin DIP design and a maximum clock frequency of 2 MHz, this reliable MPU effortlessly handles up to 64 KB of memory. Elevate your projects with its versatile instruction set and robust on-chip features, ensuring efficient processing and seamless integration. Perfect for developers seeking quality and efficiency in their designs.
