BRAND: Megger

Insulation Tester 2500V 200GΩ CATIV 600V 228x108x63mm 1.75kg

Insulation Tester 2500V 200GΩ

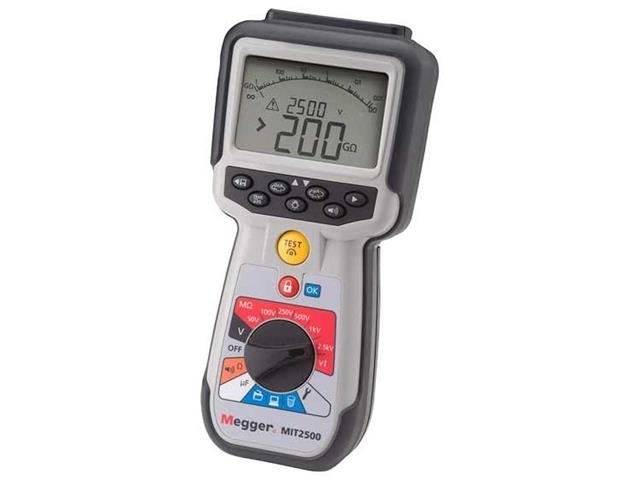

The MIT2500 insulation and continuity tester has been designed for Electrical and Industrial test applications, where operation voltages exceed 1000 V and higher insulation test voltages are needed.

The MIT2500 offers both fixed range voltages of 50 V, 100V, 250 V, 500 V, 1000 V and 2500 V, as well as a variable range that allows any voltage between 50 V and 2500 V to be “dialled in”.

This is supported by the new test voltage feedback control, which maintains the output test voltage to within 2% of the selected range, even when under test.

The MIT2500 uses the redesigned case, back-stand, and 6 cell battery compartment, as well as incorporating a Guard terminal to reduce surface tracking currents that reduce accuracy at higher voltages.

All instruments are over-moulded for increased protection and achieve an IP54 weatherproof rating


    • Insulation testing between 2.5kV and 200Gohm range in a handheld instrument
    • Guard terminal for high resistance accuracy
    • Adjustable insulation test voltage between 50V and 2500V
    • Stabilised insulation test voltage
    • Rechargeable options for mains and car charging
    • Single range, faster continuity testing between 0.01ohm and 1Mohm
    • Polarisation Index (PI) & Dielectric Absorption Ratio (DAR)
    • New case design with optional magnetic hanging strap
    • ABS housing


    • Motor
    • Cable testing
    • Single and three-phase rotating machinery


  • CAT IV 600V
  • IP54 rated
  • IEC61010
  • EN61557


Additional Information

Device Tester
Type Insulation
