Lifting Magnet (Electromagnet). 15Kg Holding Force. 12VDC 0,25A 3W
15Kg Holding Force Lifting Magnet
Overview

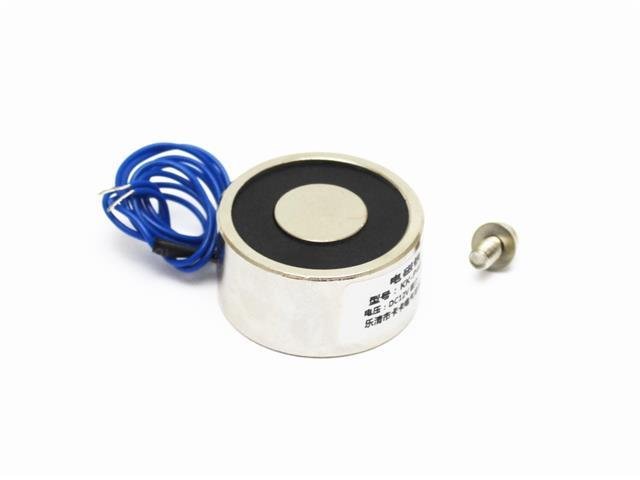

This is a 12V DC electromagnet with a 15kg lifting force.
A lifting solenoid electromagnet consists of an iron core and a coil to attract magnetic substances, using the magnetic action induced by electric current, only while the current is applied.
Note: Images seen may be different from actual product in terms of dimensions
Features
Precaution
- Electromagnets are specified with a "holding force" of say 15kg.
- This is not how much weight they can pick up!
- Divide the holding force by about 5 to get a rough estimate of how heavy a thing it can pick up.
- So in this case, about 6kg max.
- Note that pick-up weight also depends on a flat surface, maximum surface contact and the ferromagnetic metal content of the object to be picked up.
- A perfectly flat steel cube will work great, something oddly shaped or covered in rubber or plastic will not!
Specifications
- Model : KK-P40/20

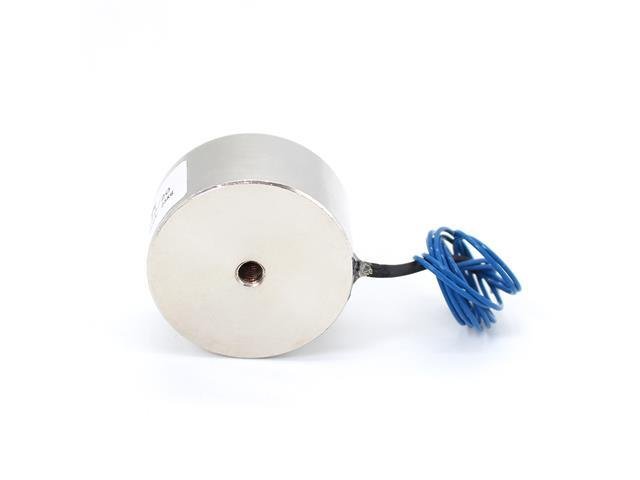

- Thread Size : M5
- Operating Voltage : 12V DC
- Power Consumption : 3.5W
- Holding Force : 15kg
- Total Diameter : ±40mm
- Centre Diameter : ±18mm
- Cable Length : ±250mm
- Height : ±20mm
Additional Information
| Device |
Lifting Magnet |
| Type |
15Kg Holding Force |
Unlock powerful lifting capabilities with the MGT Electromagnet 15KG 12VDC. Designed for efficiency, this reliable electromagnet delivers a robust 15kg holding force, perfect for various applications. Experience seamless operation and enhanced productivity with this compact, high-performance lifting solution.
