MGT ELECTROMAGNET 5KG 12VDC - Magnets -
MGT ELECTROMAGNET 5KG 12VDC - Magnets -
MGT ELECTROMAGNET 5KG 12VDC - Magnets -
MGT ELECTROMAGNET 5KG 12VDC - Magnets -

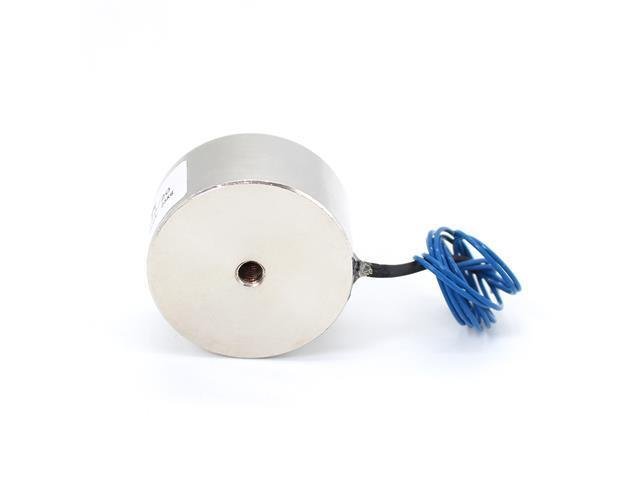

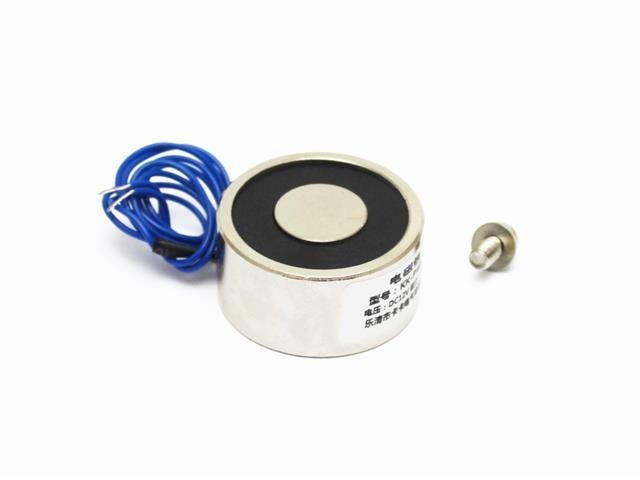

MGT ELECTROMAGNET 5KG 12VDC

SKU: MGT ELECTROMAGNET 5KG 12VDC

BRAND: Communica


Sold Out

Collections:

Type: Magnets

Category: Lifting Magnet

Lifting Magnet (Electromagnet). 5Kg Holding Force. 12VDC

5Kg Holding Force Lifting Magnet

Overview

This is a 12V DC electromagnet with a 5kg lifting force. A lifting solenoid electromagnet consists of an iron core and a coil to attract magnetic substances, using the magnetic action induced by electric current, only while the current is applied.

Features

PRECAUTION

  • Electromagnets are specified with a "holding force" of say 5kg.
  • This is not how much weight they can pick up!
  • Divide the holding force by about 5 to get a rough estimate of how heavy a thing it can pick up.
  • So in this case, about 1kg max.
  • Note that pick-up weight also depends on a flat surface, maximum surface contact and the ferromagnetic metal content of the object to be picked up.
  • A perfectly flat steel cube will work great, something oddly shaped or covered in rubber or plastic will not!

Specifications

  • Model : KK-P25/20
  • Thread Size : M4
  • Operating Voltage : 12V DC
  • Power Consumption : 1.5W
  • Holding Force : 5kg
  • Total Diameter : ±25mm
  • Centre Diameter : ±12mm
  • Cable Length : ±330mm
  • Height : ±20mm

Additional Information

Device Lifting Magnet
Type 5Kg | Holding Force
Elevate your projects with the MGT Electromagnet 5KG 12VDC, delivering a powerful 5kg holding force. Perfect for lifting and securing ferromagnetic objects, this reliable electromagnet is ideal for DIY enthusiasts and professional applications. Enhance your workflow with its compact design and efficient 12V operation.
