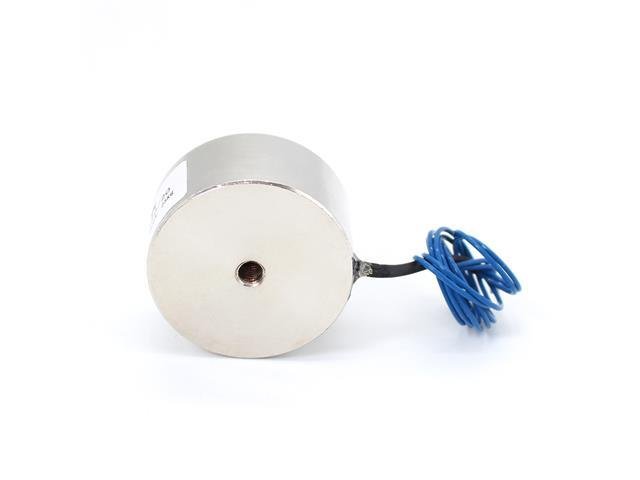

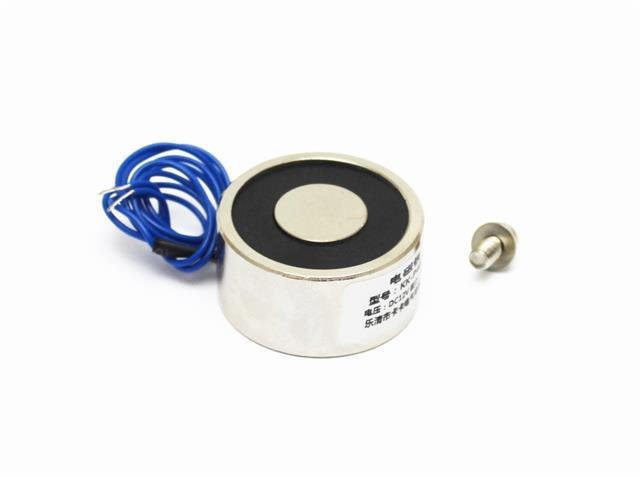

MGT ELECTROMAGNET 8KG 12VDC

SKU: MGT ELECTROMAGNET 8KG 12VDC

BRAND: Communica


Lifting Magnet (Electromagnet). 8Kg Holding Force. 12VDC 0.13A 1.5W

8Kg Holding Force Lifting Magnet

Overview

This is a 12V DC electromagnet with a 30kg lifting force.  A lifting solenoid electromagnet consists of an iron core and a coil to attract magnetic substances, using the magnetic action induced by electric current, only while the current is applied.

Note: Images seen may be different from actual product in terms of dimensions

Features

Precaution

  • Electromagnets are specified with a "holding force" of say 8kg.
  • This is not how much weight they can pick up!
  • Divide the holding force by about 5 to get a rough estimate of how heavy a thing it can pick up.
  • So in this case, about 1.6kg max.
  • Note that pick-up weight also depends on a flat surface, maximum surface contact and the ferromagnetic metal content of the object to be picked up.
  • A perfectly flat steel cube will work great, something oddly shaped or covered in rubber or plastic will not!

Specifications

  • Model : ZX-P25/20
  • Thread Size : M4
  • Operating Voltage : 12V DC
  • Power Consumption : 1.5W
  • Holding Force : 8kg
  • Total Diameter : ±25mm
  • Centre Diameter : ±12mm
  • Cable Length : ±330mm
  • Height : ±20mm

Additional Information

Device Lifting Magnet
Type 8Kg Holding Force
