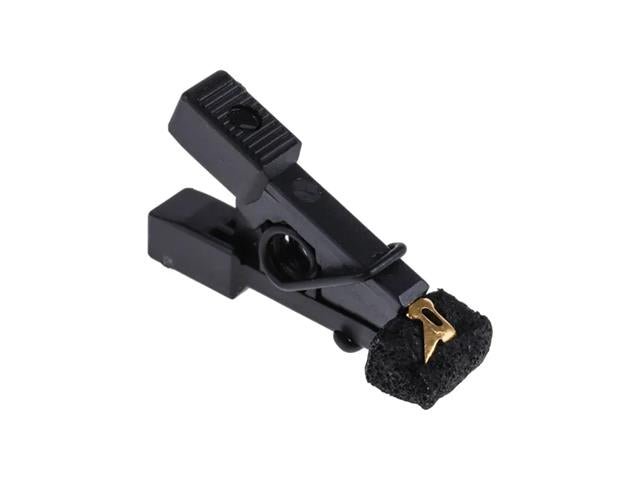

MICRO-SMD CLIP 1

Name: MICRO-SMD CLIP 1 - Communica [Part No: MICRO-SMD CLIP 1]
Brand: SKS Hirschmann
SKU: MICRO-SMD CLIP 1
Price: 288 ZAR
Availability: InStock

SKU: MICRO-SMD CLIP 1

BRAND: SKS Hirschmann

R 331.20_{(inc VAT)}
R 288.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: SKS Hirschmann, Test & Measurement

Type: Test Clips

Category: Crocodile Clips

Mini 2-Pole Test Clip SMD Spring Loaded - 1A 30VAC / 60VDC (972416100)

Mini 2-Pole Test Clip

Specifications

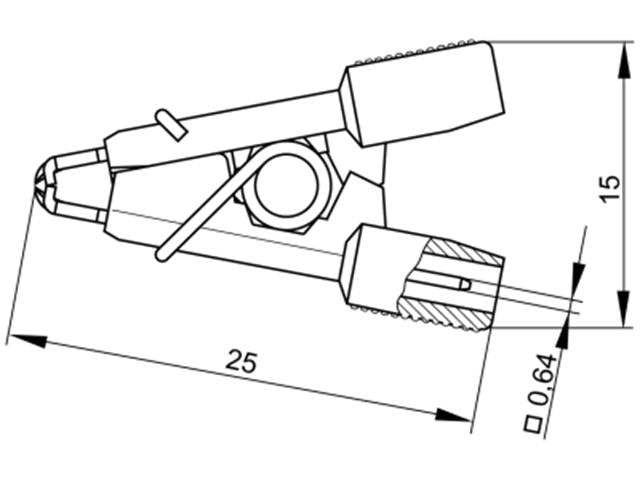

connection	pin Ø 0.64 mm
rated voltage	30 VAC / 60 VDC
measurement cat. acc. to IEC 61010	O ⁽²⁾
rated current (consider derating curve)	1 A
material socket	copper - beryllium, gold plated
housing material	PBT
temperature range acc. To IEC61010⁽¹⁾	-30 °C to +70 °C
inflammability class acc. to UL 94 (only valid for basic material of housing)	HB
clamping range	8 mm

Additional Information

Device	Test Clip
Type	Mini \| 2-Pole
Rating	1A 30VAC / 60VDC

Discover precision with our MICRO-SMD CLIP 1, a mini 2-pole test clip designed for reliable 1A testing up to 30VAC/60VDC. Featuring a gold-plated copper socket and robust PBT housing, it ensures durability and accuracy in any environment. Perfect for electronics enthusiasts and professionals alike, this clip simplifies your testing tasks while providing exceptional performance. Upgrade your toolkit today!
