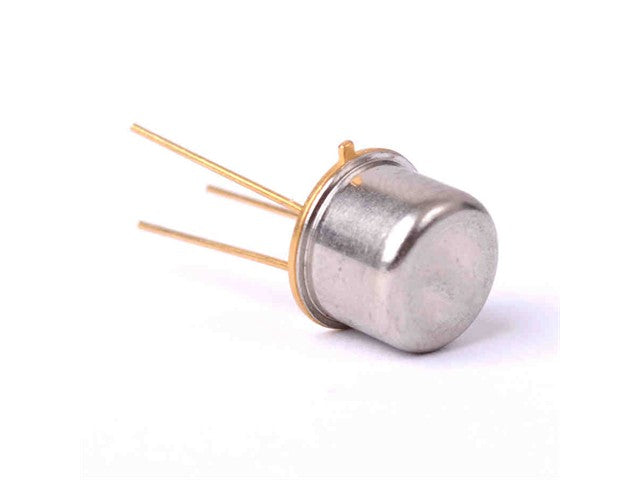

MM4001

Name: MM4001 - Communica [Part No: MM4001]
Brand: Communica
SKU: MM4001
Price: 27.60 ZAR
Availability: InStock

SKU: MM4001

BRAND: Communica

R 31.74_{(inc VAT)}
R 27.60_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Bipolar Transistor

Transistor Silicon PNP 150V 150V 500mA 20MN TO5

Transistor Silicon PNP

Specifications

Case	TO39
Vbr CBO	150
Vbr CEO	150
Max. PD (W)	5.0
Derate (Amb) (W/°C)	28m
Min hFE	20
Ic Max. (A)	500m
@Ic (test) (A)	10m
Icbo Max. @Vcb Max. (A)	1.0u
Polarity	PNP
Oper. Temp (°C) Max.	175
@VCE (V)	10
Pinout Equivalence Number	3-12
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	1 W
Maximum Collector-Base Voltage \|Vcb\|	150 V
Maximum Collector-Emitter Voltage \|Vce\|	150 V
Maximum Emitter-Base Voltage \|Veb\|	4 V
Maximum Collector Current \|Ic max\|	0.5 A
Max. Operating Junction Temperature (Tj)	200 °C
Collector Capacitance (Cc)	10 pF
Forward Current Transfer Ratio (hFE), MIN	20

Additional Information

Device

Transistor

Discover the MM4001 PNP Transistor, designed for high performance with a 150V rating and 500mA current capacity. Ideal for reliable electronics projects, it ensures optimal efficiency and durability, operating up to 175°C. Upgrade your circuit with this powerful, versatile component today!
