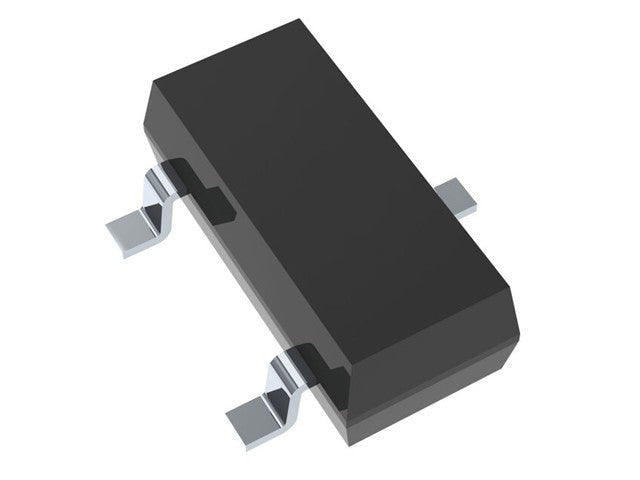

MMBT3906

Name: MMBT3906 - Communica [Part No: MMBT3906]
Brand: Communica
SKU: MMBT3906
Price: 0.45 ZAR
Availability: InStock

SKU: MMBT3906

BRAND: Communica

R 0.52_{(inc VAT)}
R 0.45_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Transistors

Category: PNP General Purpose Transistor

P 40V 40V 200MA 100MN SOT23 (SMD)

Specifications

Type Designator: MMBT3906
SMD Transistor Code: 2A_3N_7Bp_7Bt_7BW_K3N
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.2 A
Operating Junction Temperature (Tj): 135 °C
Transition Frequency (ft): 250 MHz
Collector Capacitance (Cc): 4.5 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Noise Figure, dB: -
Package: SOT23

Additional Information

Device	Transistor
Type	40V 40V 200MA 100MN SOT23 (SMD)

Upgrade your electronics projects with the MMBT3906 SMD Transistor. This reliable PNP transistor features a 40V rating and 200mA current, ensuring high performance and efficiency. Ideal for various applications, it delivers exceptional power dissipation and quick response times, making it a perfect choice for your circuit designs.
