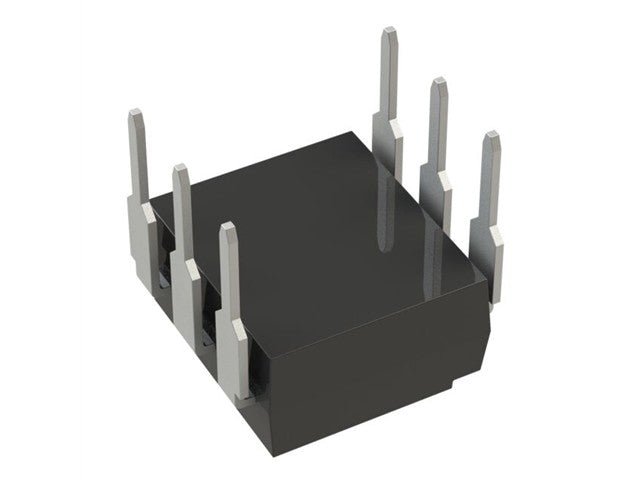

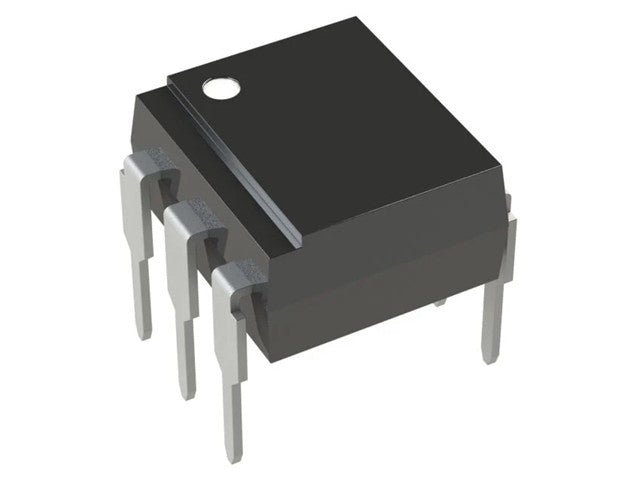

MOC3022

SKU: MOC3022

BRAND: Communica

In Stock
R 10.06_{(inc VAT)}
R 8.75_{(ex VAT)}

Collections: Opto-electronics

Type: Optocouplers, Photodetectors & Photointerrupters

Category: Opto Couplers

Opto-isolator Triac Output 5000Vrms 1 Channel 6-DIP

1 Channel 6-DIP Opto-isolator Triac

Specifications

Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Voltage - Isolation	5000Vrms
Voltage - Off State	400 V
Static dV/dt (Min)	1kV/µs
Current - LED Trigger (Ift) (Max)	10mA
Current - Hold (Ih)	250µA (Typ)
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Approval Agency	CQC, CSA, TUV, UL, VDE

Additional Information

Device	Opto Isolator
Type	1 Channel \| 6-DIP
