BRAND: Communica

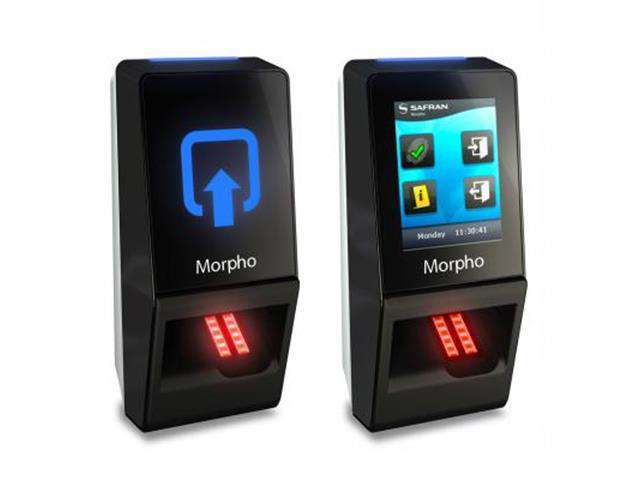

Morpho Access Control WR Sigma Lite Biometric Reader without Display


Engineered with the same attention to detail and performance as their predecessor, the MorphoAccess® SIGMA Lite terminals are specifically designed to equip narrow mounting surfaces, such as glass/aluminum door mullions, turnstiles, or server rack doors.

With two designs and multiple card reader options, there are a variety of models to address the widest range of deployment scenarios, both indoors and outdoors.


  • World’s #1 fingerprint technology inside
  • 1:10,000 user identification in 1 second
  • 30,000 templates, 250,000 IDs in authorized user list, 1 Million logs
  • Fake finger detection, duress finger, timed anti-pass back
  • Prox®, iClass® or MIFARE®/DESFire®/NFC contactless card reader as an option
  • IP65 rated and vandal resistant (IK08)
  • Accuracy maintained regardless of number of users in database
  • FBI PIV IQS certified optical sensor
  • Time & Attendance In & Out function keys
  • User ID, PIN and BioPIN(3) management
  • Intuitive icons and live messages
  • Timed anti-pass back function
  • Banned/authorized user lists
  • Embedded Web Server:
    • Enables on-device enrollment, terminal configuration and transaction log retrieval
    • Use with any device (PC, laptop, tablet, smartphone)
    • Use with any OS (Windows, Android, Apple iOS)
    • Use with any web browser (Google Chrome, Mozilla Firefox, Safari, Internet Explorer)


  • CPU: ARM® CortexTM-A9 core 1GHz
  • Linux Operating System
  • FBI PIV IQS certified optical fingerprint sensor
  • Contactless reader options : Prox, iClass, MIFARE/MIFARE Plus/DESFire/NFC(1)
  • Network/Communication : - Ethernet, RS485, USB - Wi-Fi option
  • Internal storage capacity : 512MB Flash, 512MB RAM - 500 user records, extendable to 3,000 or 10,000 with license (x3 templates each, including 1 duress) - 250,000 IDs in authorized user list - 1 Million transaction logs
  • Power supply : - 12V-24V DC - Power over Ethernet (PoE) -Compatible with PoE+ switches
  • Inputs/outputs : Wiegand In & Out (customizable up to 512 bits), Door Relay, 2 General Purpose Inputs (including Door monitoring), 2 General Purpose Outputs
  • Tamper switches
  • Operating conditions: Temperature : -20°C to 55°C (-4°F to 131°F) - Humidity: 10% to 80% (non condensing)
  • Ingress protection: IP65
  • Mechanical impact protection: IK08(2)
  • HxWxD = 156 x 68 x 62 mm (6.14 x 2.68 x 2.44 inches)
  • Weight : 280 grams
  • EMC/Safety standards : CE, CB, FCC
  • RoHS, REACh and WEEE compliant
