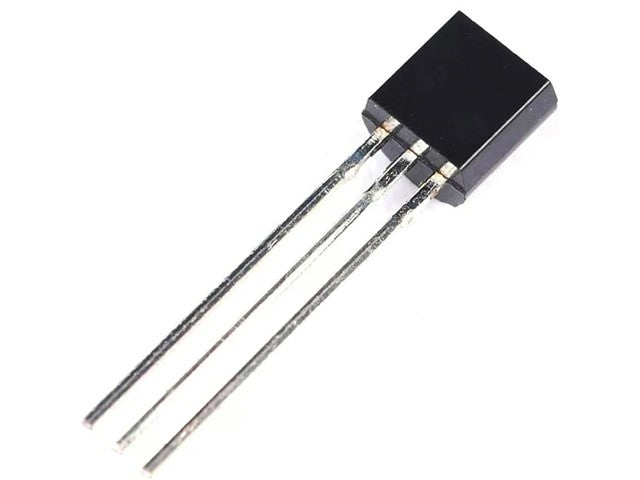

MPS2369

Name: MPS2369 - Communica [Part No: MPS2369]
Brand: Communica
SKU: MPS2369
Price: 1.25 ZAR
Availability: InStock

SKU: MPS2369

BRAND: Communica

R 1.44_{(inc VAT)}
R 1.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Bipolar Transistor

Bipolar (BJT) NPN Transistor

Specifications

Case	TO92
Vbr CBO	40
Vbr CEO	15
Max. PD (W)	360m
C(ob) (F)	4.0p
Derate (Amb) (W/°C)	2.8m
t(f) Max. (S)	18n+
hfe	40
Ic Max. (A)	200m
Icbo Max. @Vcb Max. (A)	400n
Polarity	NPN
Tr Max. (s)	12n
t(stor) Max. (S)	13n
Trans. Freq (Hz) Min.	500M
@VCE (test) (V)	10
Oper. Temp (°C) Max.	135
@Ic (A)	10m
Pinout Equivalence Number	3-12
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	0.36 W
Maximum Collector-Base Voltage \|Vcb\|	40 V
Maximum Collector-Emitter Voltage \|Vce\|	15 V
Maximum Emitter-Base Voltage \|Veb\|	4 V
Maximum Collector Current \|Ic max\|	0.2 A
Max. Operating Junction Temperature (Tj)	150 °C
Collector Capacitance (Cc)	4 pF
Transition Frequency (ft):	500 MHz
Forward Current Transfer Ratio (hFE), MIN	40

Additional Information

Device

Transistor

Discover the MPS2369 Bipolar NPN Transistor, designed for high-performance applications with a maximum collector current of 200mA and frequency up to 500MHz. With excellent power dissipation and thermal stability, this reliable component ensures optimal functionality for your electronic projects. Upgrade your circuit design with the MPS2369 for efficient and robust performance.
