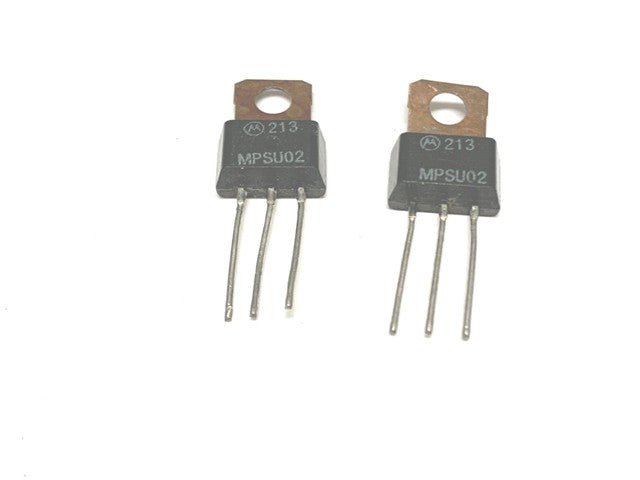

MPSU02

Name: MPSU02 - Communica [Part No: MPSU02]
Brand: Communica
SKU: MPSU02
Price: 2.86 ZAR
Availability: InStock

SKU: MPSU02

BRAND: Communica

R 3.29_{(inc VAT)}
R 2.86_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Power Transistor

N 60V 40V 800MA 50/300 X17 NPN Silicon Power Bipolar Junction Transistor

NPN Silicon Power Bipolar Junction Transistor

Specifications

Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.8 A
Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics

Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 20 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Package: X17

Additional Information

Device

Transistor

Optimize your electronics with the MPSU02 NPN Silicon Power Bipolar Junction Transistor. With a maximum collector power dissipation of 10W and a robust operating temperature of 150°C, this reliable transistor ensures efficient performance for your projects. Experience superior reliability and electrical characteristics, including a transition frequency of 100 MHz, making it ideal for high-frequency applications. Elevate your circuit designs with the trusted power of MPSU02.
