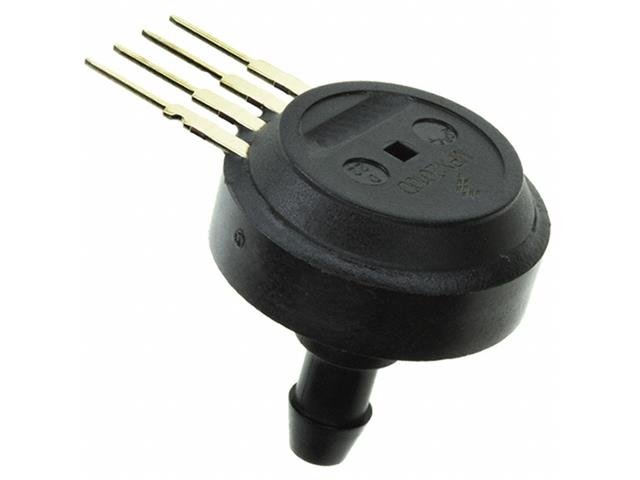

MPX2010GS

SKU: MPX2010GS

BRAND: NXP


Pressure Sensor 10kPa 1.45psi 344E-01

Pressure Sensor 10kPa

Specifications

Applications
Board Mount
Pressure Type
Vented Gauge
Operating Pressure
1.45PSI (10kPa)
Output Type
Wheatstone Bridge
Output
0 mV ~ 25 mV (10V)
Accuracy
±1%
Voltage - Supply
10V ~ 16V
Port Size
Male - 0.19" (4.93mm) Tube
Port Style
Barbed
Features
Temperature Compensated
Termination Style
PC Pin
Maximum Pressure
10.88PSI (75kPa)
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole

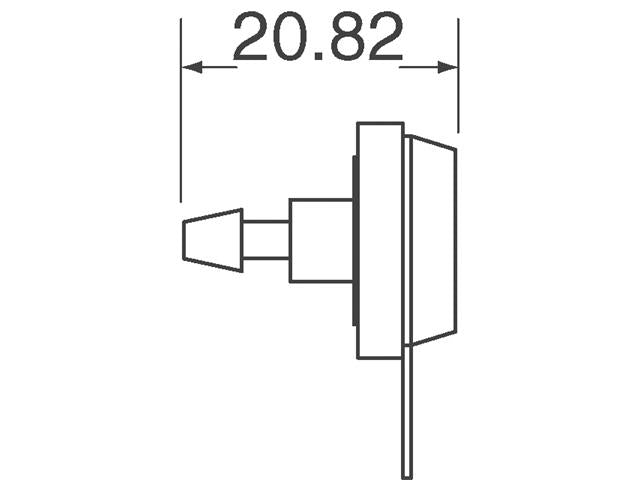

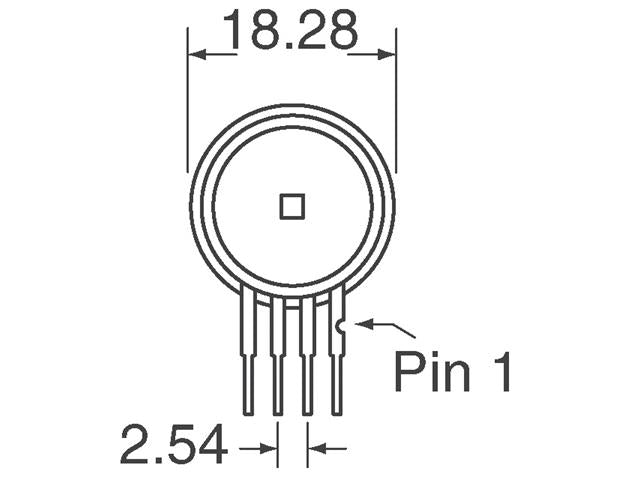

Package / Case
4-SIP Module

Downloads

Additional Information

Device Sensor
Type Pressure | 10kPa
