MS3122E-20-41S

SKU: MS3122E-20-41S

BRAND: Amphenol Industrial

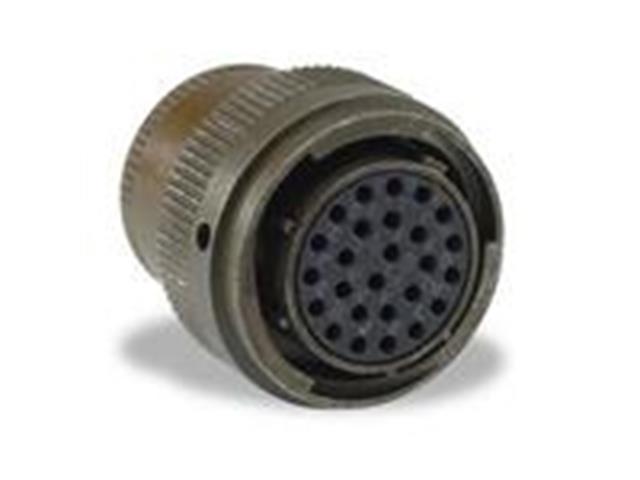

Circular Connector MIL-DTL-26482 Series 1 Style Bayonet Lock Square Flange Panel Recept Female 41 Pole #20 Crimp Contact 7,5A 600VAC/850VDC(KPSE02E-20-41S)(PT02SE-20-41S)(85102R2041S50)

Circular Connector MIL-DTL-26482 Series

Specifications

  • Connector Type : Receptacle, Female Sockets
  • Number of Positions : 41
  • Size - Insert : 20-41
  • Mounting Type : Panel Mount
  • Mounting Feature : Flange
  • Termination : Crimp
  • Fastening Type : Bayonet Lock
  • Orientation : N (Normal)
  • Shell Material : Aluminum
  • Shell Finish : Olive Drab Chromate over Cadmium
  • Contact Finish - Mating : Gold
  • Color : Olive Drab
  • Ingress Protection : Environment Sealed
  • Shielding : Unshielded
  • Operating Temperature : -55°C ~ 125°C
  • Contact Material : Copper Alloy
  • Contact Finish Thickness - Mating
  • Insert Material : Neoprene
  • Applications : Aerospace, Industrial, Instrumentation, Mass Transit, Military

Additional Information

Device Connector
Type Circular | MIL-DTL-26482
