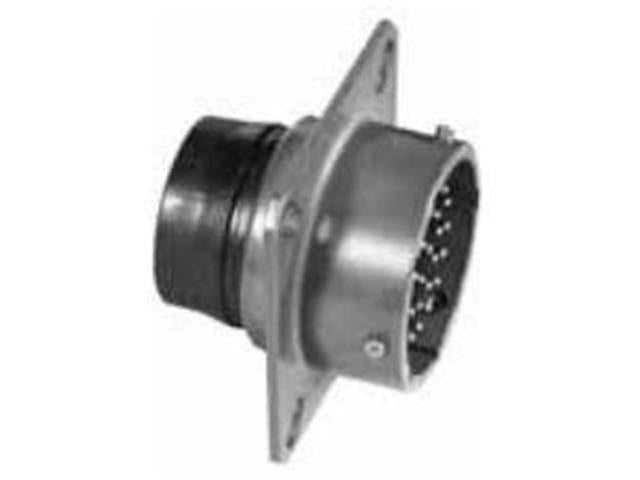

Circular Connector MIL-DTL-26482 Series 1 Style Bayonet Lock Square Flange Panel Receptacle Male 21 Pole #16 Crimp Contact 22A 600VAC/850VDC (KPSE02E-22-21P) (PT02SE-22-21P)(85102R2221P50)
MIL-DTL-26482 Series Circular Connector
Feature(s)
- Mounting : Box Mount
- Military Standard : MIL-C-26482
- Military Standard Series : Series I
- Automotive : No
- Type : Circular
- Gender : RCP
- Body Orientation : Straight
- Polarization : N
- Number of Ports : 1
- Number of Contacts : 21
- Number of Terminals : 21
- Contact Gender : PIN
- Termination Method : Crimp
- Shell Size / Insert Arrangement : 22-21
- Less Contact : No
- Contact Material : Copper Alloy
- Contact Plating : Gold
- Shell Material : Aluminum
- Shell Plating : Olive Drab Cadmium
- Housing Color : Olive Drab
- Maximum Current Rating (A) : 10
- Maximum Voltage Rating : 1000VAC
- Minimum Operating Temperature (°C) : -55
- Maximum Operating Temperature (°C) : 125
- Mating Style : Bayonet Lock
- Product Length (mm) : 34.49
- Product Depth (mm) : 40.08
- Product Height (mm) : 40.08
Additional Information
Device |
Connector |
Type |
MIL-DTL-26482 | Circular |
