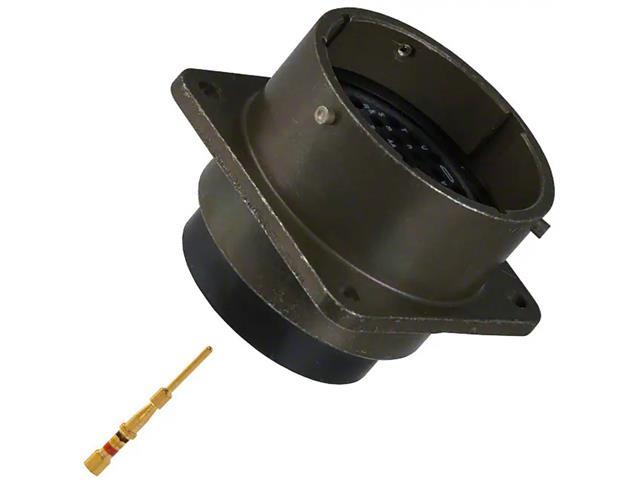

Circular Connector MIL-DTL-26482 Series 1 Style Bayonet Lock Square Flange Panel Receptacle Male 55 Pole #20 Crimp Contact 7,5A 600VAC/850VDC(KPSE02E-22-55P)(PT02SE-22-55P)(85102R2255P50)
MIL-DTL-26482 Series Circular Connector
Specifications
- Connector Type : Receptacle, Male Pins
- Number of Positions : 55

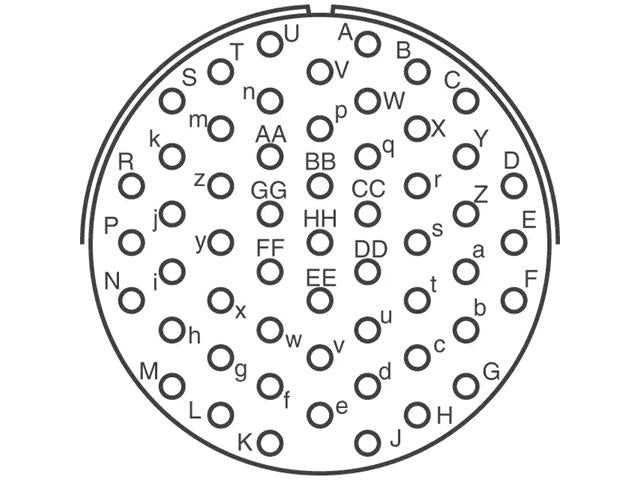

- Shell Size - Insert : 22-55
- Mounting Type : Panel Mount
- Mounting Feature : Flange
- Termination : Crimp
- Fastening Type : Bayonet Lock
- Orientation : N (Normal)
- Shell Material : Aluminum
- Shell Finish : Olive Drab Chromate over Cadmium
- Contact Finish - Mating : Gold
- Color : Olive Drab
- Ingress Protection : Environment Sealed
- Shielding : Unshielded
- Operating Temperature : -55°C ~ 125°C
- Contact Material : Copper Alloy
- Insert Material : Neoprene
Additional Information
Device |
Connector |
Type |
MIL-DTL-26482 | Circular |
