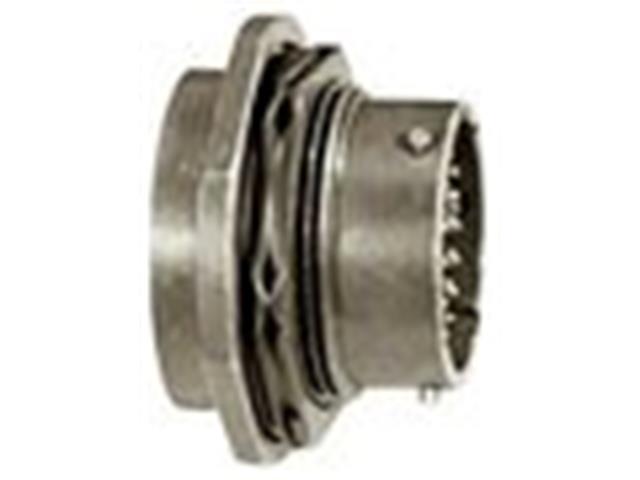

MS3124E-16-26P

MS3124E-16-26P

SKU: MS3124E-16-26P

BRAND: Cannon


In Stock
R 999.35 (inc VAT)
R 869.00 (ex VAT)

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL 26482 Connectors

Circular Connector MIL-DTL-26482 Series 1 Style Bayonet Lock Bulkhead Jam Nut Receptacle Male 26 Pole #20 Crimp Contact 7,5A 600VAC/850VDC(KPSE07E-16-26P)(PT07SE-16-26P)(85107R1626P50)

Circular Connector MIL-DTL-26482 Series 1

Specifications

  • Mounting : Jam Nut
  • Military Standard : MIL-C-26482
  • Military Standard Series : Series I
  • Automotive : No
  • Type : Circular
  • Gender : RCP
  • Body Orientation : Straight
  • Polarization : N
  • Number of Ports : 1
  • Number of Contacts : 26
  • Number of Terminals : 26
  • Contact Gender : PIN
  • Termination Method : Crimp
  • Shell Size / Insert Arrangement : 16-26
  • Less Contact : No
  • Contact Material : Copper Alloy
  • Contact Plating : Gold
  • Shell Material : Aluminum
  • Shell Plating : Cadmium
  • Maximum Voltage Rating : 600VAC
  • Minimum Operating Temperature (°C) : -55
  • Maximum Operating Temperature (°C) : 125
  • Mating Style : Bayonet Lock
  • Product Length (mm) : 36.52
  • Product Depth (mm) : 38.5
  • Product Height (mm) : 38.5

Additional Information

Device Connector
Type Circular | MIL-DTL-26482 | Series 1
