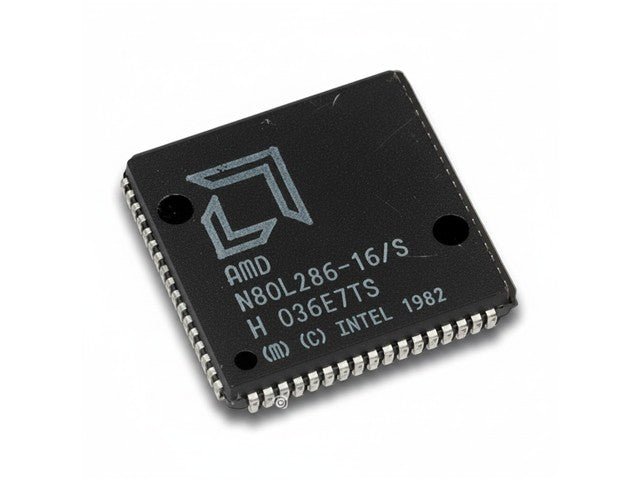

N80L286-16/S
SKU: N80L286-16/S
BRAND: Communica
R 181.13 (inc VAT) R 157.50 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
16-BIT 16MHz RISC Microprocessor PLCC66
Specifications
Category: Microprocessors (MPU)
Manufacturer: AMD (Advanced Micro Devices)
Family: Am286
Part Number: N80L286-16
Architecture: Intel-compatible 80286
Word Size: 16-bit
Core Count: 1
Clock Frequency: 16 MHz
Bus Speed: 16 MHz
Bus Rate: 16 MT/s
Clock Multiplier: 1×
Technology: nMOS Low-Power
Supply Voltage: 5 V ±5%
Power Dissipation: 2.89 W
Maximum Addressable Memory: 16 MB
Address Bus Width: 24-bit
Data Bus Width: 16-bit
Operating Temperature (Case): 0°C to +85°C
Storage Temperature: -65°C to +150°C
Package Type: 68-pin PLCC (Plastic Leadless Chip Carrier)
Introduction Year: 1989
Market Segment: Embedded / Industrial Applications
Multiprocessing Support: Uniprocessor (1-way SMP)
Cache Memory: None (no on-chip cache)
Integrated FPU: No
Optional Coprocessor Support: AMD Am287 math coprocessor
Instruction Set: x86 (80286 compatible)
Operating Modes:
Software Compatibility:
Intel 8086/8088 software compatible
IBM PC/AT compatible systems supported
Maximum Virtual Memory: Up to 1 GB in protected mode architecture
Transistor Count (Am286 family): Approximately 134,000
Feature
Low-power version of the AMD Am286 processor
Fully compatible with Intel 80286 instruction set
Hardware memory protection and management
Protected-mode operation for multitasking operating systems
Support for external Am287 floating-point coprocessor
Designed for embedded, industrial, and control applications
Lower power consumption than standard Am286 variants
Downloads
Additional Information
Unlock the potential of your embedded systems with the N80L286-16/S, a powerful 16-bit RISC microprocessor from AMD. Operating at 16 MHz, this low-power solution is ideal for industrial applications, delivering reliable performance and compatibility with Intel 80286 software. Elevate your projects with enhanced multitasking capabilities and efficient memory management.
