BRAND: Noyafa

PoE Tester and Cable Tester, RJ11 / RJ12/ RJ45, Checks Shorts on Wiring, Crosswires, Or Open Cable. Detects PoE, Identifies Standard 802.3 AT or AF. (Requires 1X 9V Battery, Not Supplied)

PoE and Cable Tester


Compared with members among NF-468 series, NF-468S wins customers’ heart not only for it’s excellent reliability for continuity testing for RJ45 and RJ11, but also for it’s outstanding PoE standard testing and the contact between crystal head and pin test function, as a continuity tester, NF-468S also support external power source to work.

NF-468S is a multi-functional cable tester which integratesmultiple types of cable test and POE test . It can test whetherthe open circuit , cross circuit and plug of wire RJ45 , RJ11and RJ12 are in normal work . It can also be used to testwhether the network cable is powered and the power dataIt can identify the type of Power Sourcing Equipment ( EitherEndspan or Midspan ) in your network . It is widely used incom mercial , household and other fields.

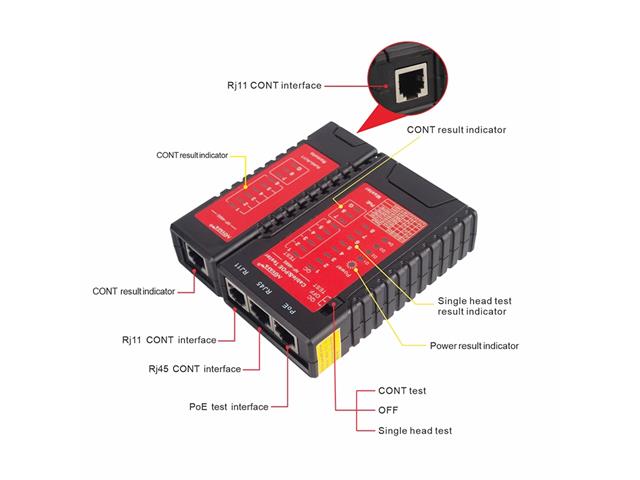

  • Quickly and easily to test results ——open, cross, pass, short.
  • Quickly to check the RJ45/RJ11 plug.
  • Quickly identify the type and provide power of PoE.
  • Compliant with IEEE 802.3 af/ 802.3 at PoE standard.
  • RJ45 connector, simple plug in the cable.
  • When the battery power is low, the“power" light will quickly flash.
  • Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.

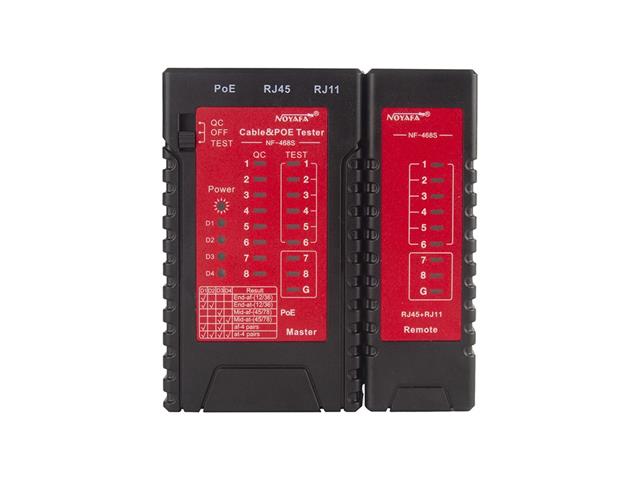

Model NF-468S
Maximum testdistance 2000m
Cable type RJ45 Network cable Cat5 / 5e / 6 / 6a ( UTP / STP )RJ11 / 12 telephone wire Cat3 ( 6P2C / 6P4C / 6P6C)
Testing indicator 8 indicator lights for quick test
Shield indication G Avalible
QC RJ45 / RJ11 plug test
PoE 4LED ( Midspan / endspan connection at / afPOE power environment )
Detect PoE Avalible

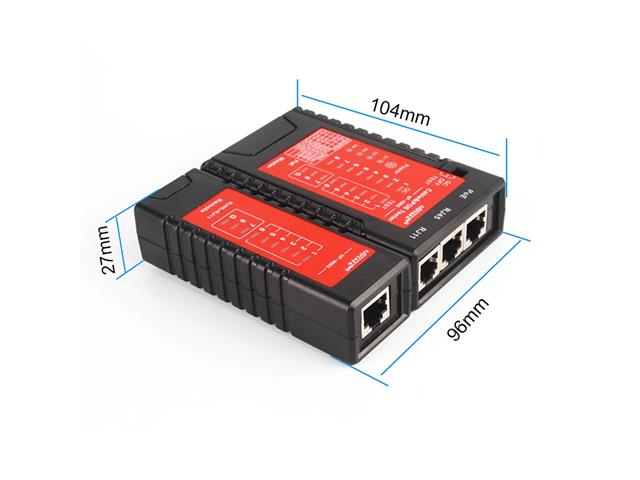

Size ( LXWXD ) 10 . 4x9 6x2 7cm
Power Supply DC9 V
Weight 200g

Additional Information

Device Tester
Type PoE and Cable
