Tone & Probe Tester, Identify Unknown Cables Quickly, Tests Continuity, Diagnose Break Points, Verify LAN Open, Short Circuit and Crossed Pairs, Pin to Pin Cable Map, Lead Conected to Transmitter Directly. ( Requires 2X 9V Battery, Not Supplied)

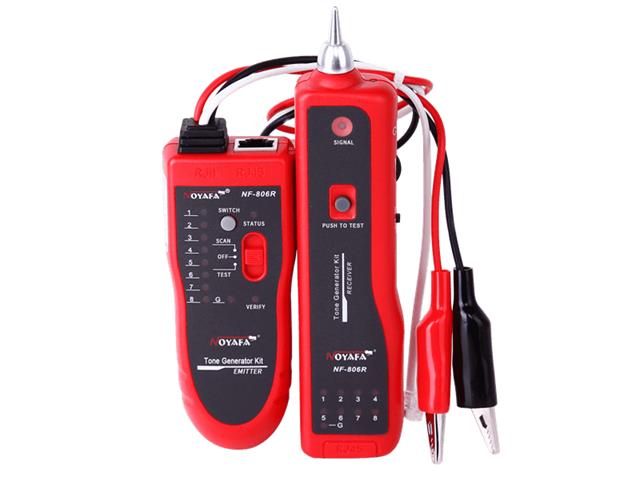

Tone & Probe Tester
Features
Check and find the needed cables among so many cables in one time.
Continuity test — wiremap for Lan cables.
Diagnose the breakage, open, short, cross.
Visible indication: pin-to-pin cable map for individual cable (not by pairs).

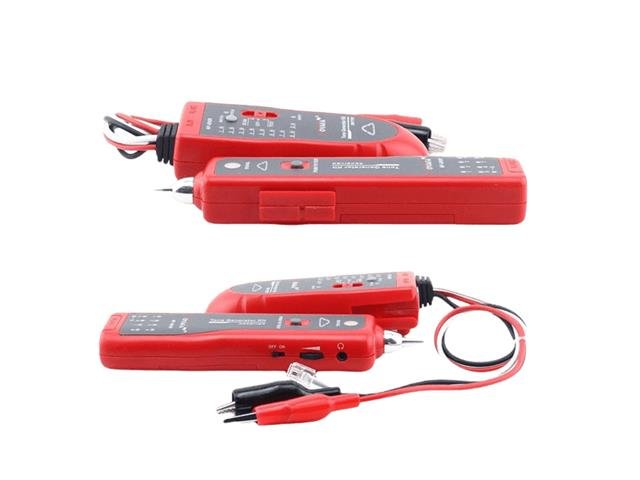

Transmitter with RJ11 connector and pair of alligator clips.
Low Voltage alarm function.
Earphone for using in noisy environments.
LED light assists to use in dark corners.
Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
100% Affordable. Manufactured in China and a lot cheaper than competitor products with similar quality.
Specifications
NF-806 Transmitter specifications
Tone frequency : 200Hz
Max. distance of transmission : Up to 2 kilometers
Max. working current : 10mA
Volume Regulate Function : Audio volume level control
Tone mode : 2 Tones, adjustable
Compatible connectors : RJ45, cable clip with RJ11 connector
Max. signal voltage : 8Vp-p
LED lights display : Wiremap, tone, tracing
Voltage protection : DC 48V

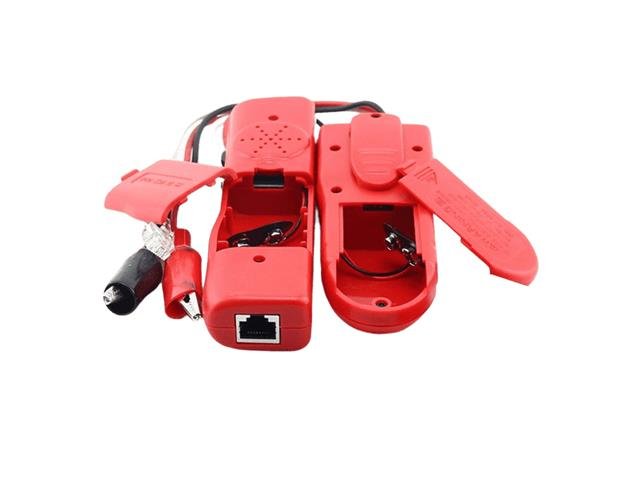

Battery Type : DC9.0V（NEDA 1604/6F22) x 1pc
Dimensions (LxWxD) : 15 x 3.7 x 2cm
NF-806 Receiver specifications
Frequency : 200kHz
Max.working current : 30mA
Earphone jack : 1
Battery Type : DC9.0V（NEDA 1604/6F22) x1pc
Dimensions (LxWxD) : 12.2 x 4.5 x 2.3cm
Additional Information
Device
Tester
Type
Tone & Probe
Effortlessly identify and diagnose cables with the NF-806R Tone & Probe Tester. This essential tool features a pin-to-pin cable map, continuity tests, and low voltage alarms, making it perfect for quick troubleshooting in any environment. Compact and affordable, it delivers professional results without breaking the bank. Uncover cable faults and streamline your networking tasks today!
