• Cable Tracking: Easily track shielded and unshielded network cables for engineering, data center maintenance, and equipment upgrades. It offers standard and interference-resistant line tracking methods.
• Wire Mapping: Quickly identify CAT5/CAT6 and validate cable wiring sequences, enabling the detection and resolution of issues like open/short circuits and crossings.
• Length Test: Automatic cable length detection simplifies accurate cable length measurement, ranging from 8.2ft/2.5m to 656ft/200m.
• Port Flashing: Easily identify connected ports on switches or routers with flashing indicator lights. It provides additional information on port operating rates and duplex modes.
• PoE Testing: Efficiently detect PoE devices, including non-standard and IEEE 802.3AF/IEEE 802.3AT standards, ensuring comprehensive PoE detection.
• PING Testing: Assess network speed issues rapidly by conducting PING tests from multiple locations to gauge server and website response speeds.
• Non-Contact Voltage Tester Pen: Enhance safety during electrical work by identifying live equipment and detecting live wires and sockets, preventing potential hazards.
• High-intensity LED Lighting: Built-in LED lighting with an electroplated spotlight reflector improves visibility in dark or low-light environments.
• Long-lasting Battery Life: Powered by a 3.7V 1,500mAh polymer lithium battery, it ensures extended usage periods, with convenient Type-C charging for easy recharging.

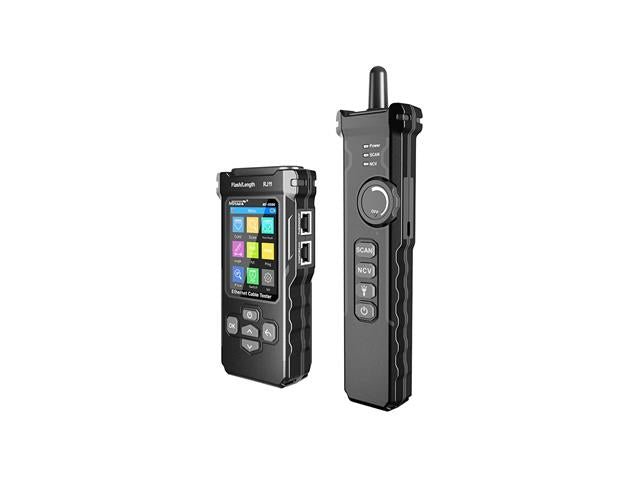

Model: NF-8506

• Cable Scan: Digital Mode/Analog Mode
• Auto OFF: Yes
• Low Power Notice: Yes

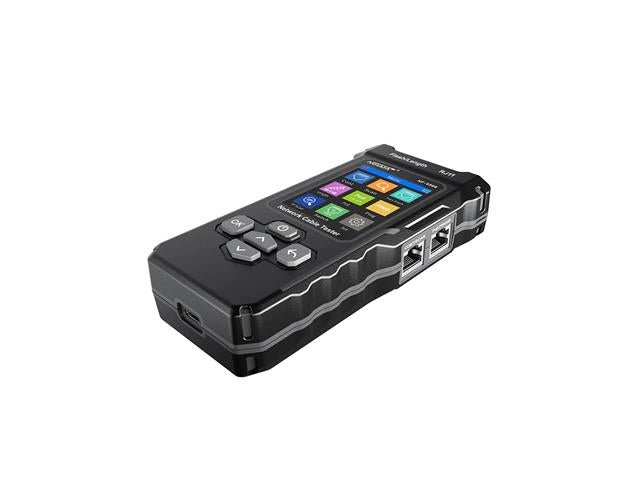

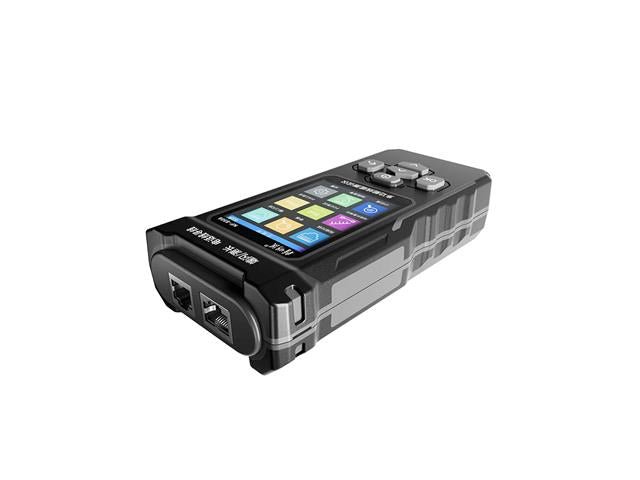

Transmitter

• Cable Continuity Test: Remote & Switch
• Cable Length Test Range: 5-200m (±3m)
• Port Flash: 10M/100M/1000M
• POE: Mid-Span/End-Spar/AT-4 pairs; POE voltage test
• Link Speed: 10M/100M/1000M; Duplex Mode (Full Duplex/ Half Duplex)
• Battery: 3.7V Lithium Battery
• Ping Scan Function: Yes
• IP Scan Function: Yes
• Transmitter Dimension: 150x75x35mm

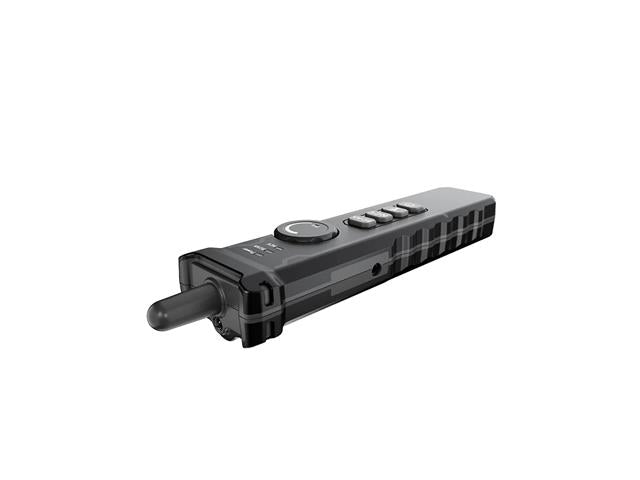

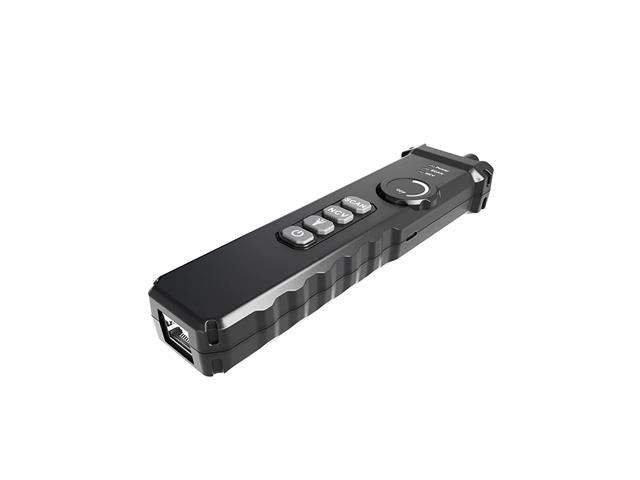

Receiver

• Led Light: Yes
• Ear Phone: Yes
• Battery: 3.7V Lithium Battery
• Receiver Dimension: 200X50X33mm

1. Datasheet - NF-8506 MULTI-FUNC CABLE TESTER
