OKDO ROCK 4 MODEL C+ STARTER KIT

SKU: OKDO ROCK 4 MODEL C+ STARTER KIT

BRAND: OKdo ROCK


OKdo ROCK 4 ModeL C+ 4GB Single Board Computer Starter Kit with PSU, Case, Preloaded Linux OS, Heat Sink, Fan

4GB Single Board Computer Starter Kit

Overview

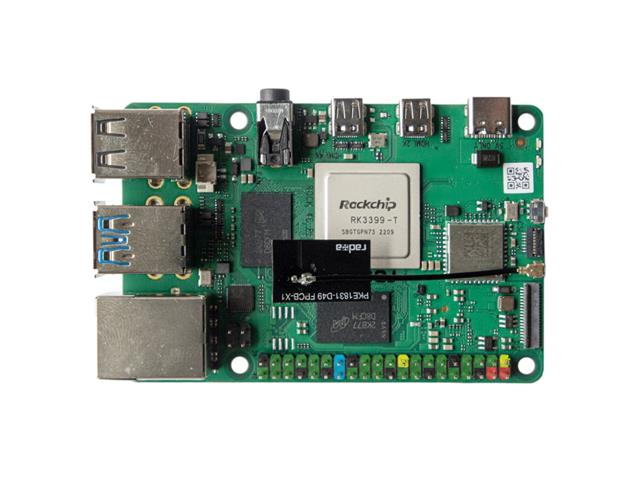

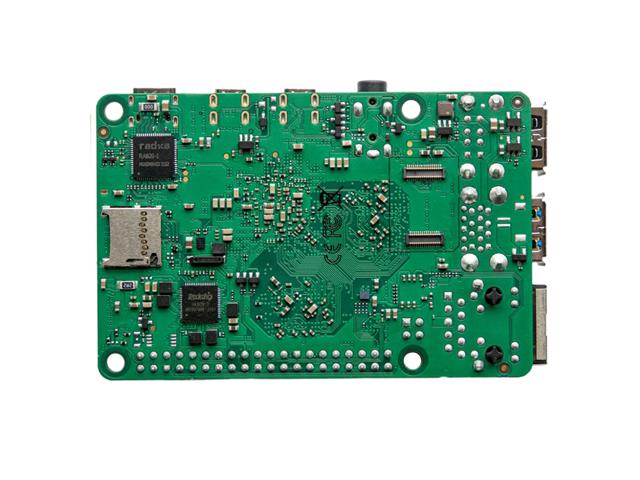

The ROCK 4C+ single-board computer is a robust, high-performing, multifunctional board based on the powerful Rockchip RK3399‑T SoC. Developed by OKdo in collaboration with Radxa, ROCK 4C+ is a perfect Raspberry Pi alternative that incorporates class-leading features, including Dual Arm Cortex A72 CPU, Quad Arm Cortex A53, Arm Mali T860MP4 GPU, integrated fan control, stereo audio jack, dual micro-HDMI ports supporting displays up to 4Kp60 resolution, multiple connectivity and storage possibilities and compatible with a wide range of software operating systems.

With the onboard On/Off power button, ROCK 4C+ is an energy-efficient single-board computer that can now perform safe shutdowns at the touch of a button without the risk of corrupting storage. It also features multiple storage capabilities, such as 4GB 64-bit RAM and an eMMC socket for robust applications. The board’s incredible features make it ideal for various multimedia and industrial applications, ensuring outstanding performance and reliability in the most demanding of applications.

Features

  • Everything you need to get started with the ROCK 4C+ in one handy kit!
  • ROCK 4C+ is a robust, high-performing, multifunctional single-board computer ideal for even the most demanding of applications
  • Linux OS preloaded, enabling you to focus on developing incredible applications
  • Keep your ROCK cool with the included heatsink and fan
  • Sturdy protection, the case provided protects your board while allowing easy access to all the ROCK’s ports and PINs

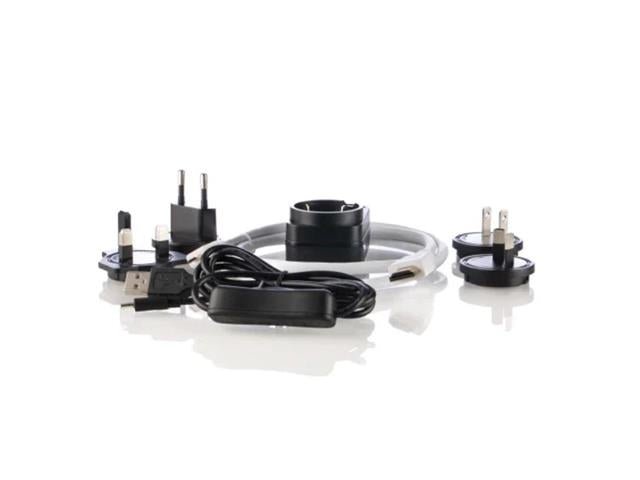

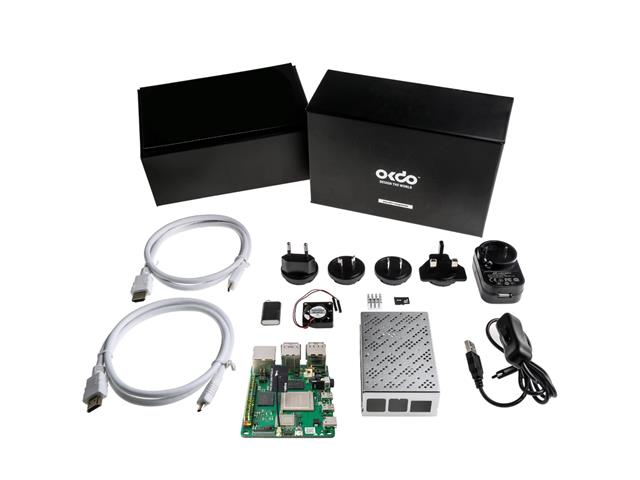

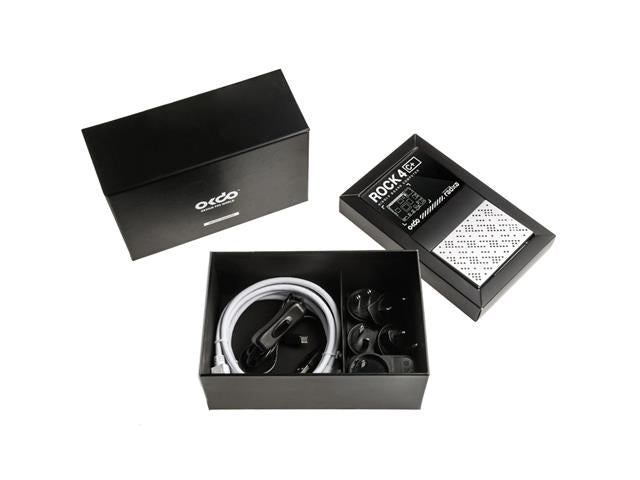

What’s in the kit!?

  • ROCK 4 Model C+ 4GB single board computer.
  • 5V/3A Universal Power supply
  • USB to USB-C cable with in-line switch.
  • 2 x 1M Micro HDMI to HDMI cables.
  • 32GB MicroSD Card. (with preloaded Linux OS)
  • MicroSD card to USB reader

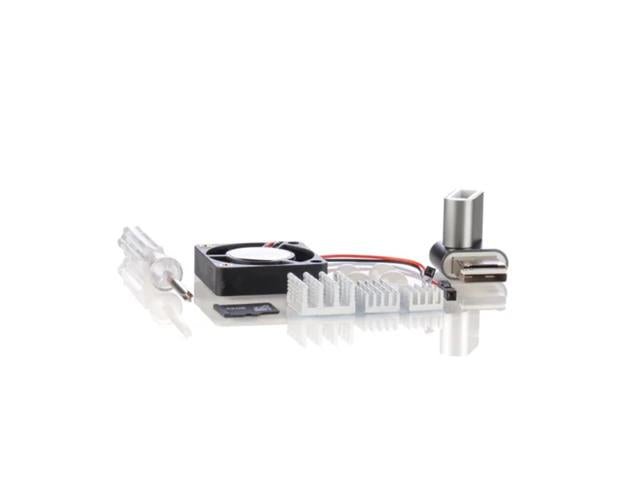

  • CPU heat sink and fan
  • Metal enclosure
  • Screwdriver

ROCK 4 model C+ 4GB interfaces

  • 11 b/g/n/ac (WiFi 5) Wireless LAN
  • Bluetooth 5.0 with BLE
  • 1 x micro-SD card slot
  • 2 x HDMI ports supporting displays up to 4Kp60 resolution and 2Kp60
  • 2 x USB2 HOST ports
  • 1 x USB3 OTG/HOST port, 1x USB3 HOST port
  • 1 x Gigabit Ethernet port (supports PoE with add‑on PoE HAT)
  • 1 x camera port (2‑lane MIPI CSI)
  • 1 x display port (4‑lane MIPI DSI)
  • 40 x user GPIO supporting a wide range of interface options: 2 x UART, 2 x SPI bus, 2 x I2C bus, 1 x PCM/I2S, 1 x SPDIF, 1 x PWM, 1 x ADC, 6 x GPIO, 2 x 5V DC power in, 2 x 3.3V power pin. The GPIO header is 97.5% (39/40) Raspberry Pi compatible.

Additional Information

Device Computer Starter Kit
Type 4GB | Single Board
References

step by step getting-started guide to set up your brand-new ROCK 4C+ Kit

You can find links to the latest software for the OKdo ROCK 4 Model C+ 4GB Single Board Computer Starter Kit below: Software Image
