BRAND: Optex

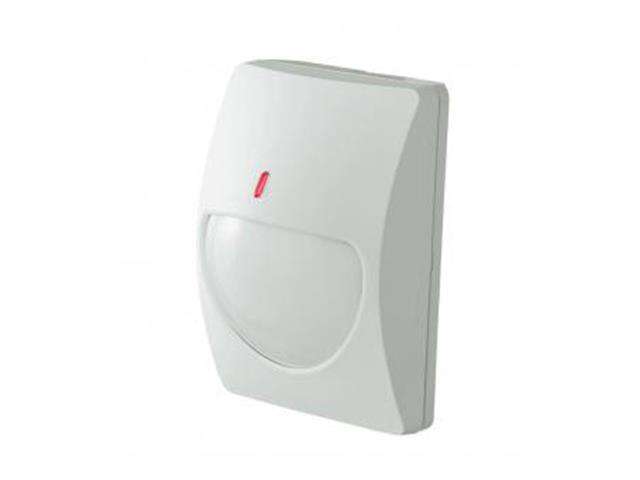

Optex CX702 Wired Industrial Indoor PIR 21 x 21m or 45 x2.4m Detector.


The CX-702 is designed to give extremely stable long-range detection performance in a variety of internal commercial and industrial applications.

With patented Multi-Focus technology, sensitivity is maintained through the entire coverage area, even in high temperature areas or in applications with low temperature contrast.

Combined with Double Conductive Shielding and Temperature Compensation, a high level of false alarm protection is guaranteed. In addition, a unique feature to the CX-702 is the ability to choose between a 70' x 70' pattern and a 150' x 8' with a simple flip of the lens.


  • Multi-Focus Optics (Patent Listed)
  • Double Conductive Shielding (Patent Listed)
  • Completely Sealed Optics with Dual Structure
  • Dual Purpose Lens
  • Temperature Compensation Circuit
  • False Alarm Protection (RFI and Temperature Protection)
  • Disturbance-Free Tamper Switch
  • Easy Installation


  • Mounting height : 5~12ft (1.5m~3.6m)
  • Detectable speed : 0.3~1.5m/sec (1~5ft/sec)
  • Warm up period : Approx. 1 min
  • Alarm period : Approx. 2.5 sec
  • Temperature : -4~122F (-20C~50C)
  • Humidity : 95% max
  • Pulse count : Approx. 20sec 2 or 4
