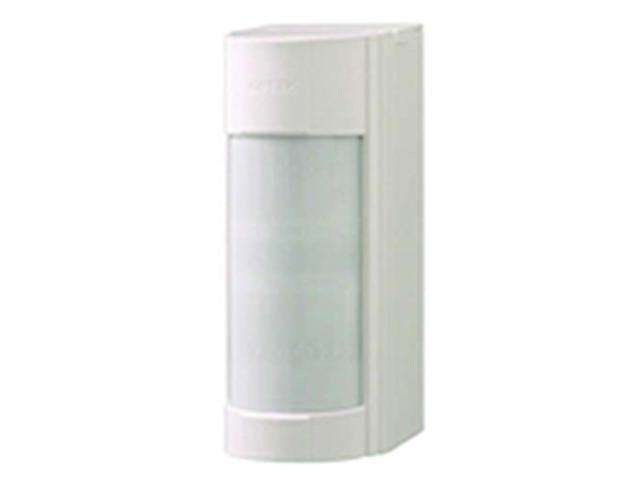

OPTEX VXI-RDAM

SKU: OPTEX VXI-RDAM

BRAND: Optex


Optex VXI RDAM Wireless Outdoor PIR, Dualtech with AM 12 x 12M PIR/Microwave PIR, Low Mount, Small Pet Friendly

Wireless Outdoor Low Mount

Overview

The VXI series is our best selling outdoor intrusion detection sensor range. It provides a very reliable approach detection with a range of up to 12m for residential and commercial applications. The sensor which should be mounted at ca 1.2m height includes two PIRs providing a double layered detection area, the sensor will only trigger when both layers are activated. The VXI sensors are animal tolerant and feature digital analysis to reduce the cause of false alarm. The VXI-RDAM is the dual-technology, battery-powered model with anti-masking.

Features

  • 12m battery-powered PIR/MW for approach detection
  • Digital signal analysis to greater reliability
  • Accommodates most wireless transmitters
  • Active infrared antimasking

Specifications

  • Detection Method: Passive Infrared (PIR) & Microwave
  • Detection Coverage: 12.0 m (40 ft.) wide / 16 zones
  • Detectable Speed: 0.3 – 1.5 m/s (1 – 5 ft/s)
  • Sensitivity: 2.0°C (3.6°F) at 0.6 m/s (2 ft/s)
  • Power Input: 3 – 9 VDC (Lithium or Alkaline Battery)
  • Current Draw: 18 μA (Standby) / 8 mA (Max.) at 3 VDC
  • Alarm Period: 2.0 ± 1.0 seconds
  • Warm-up Period: Approximately 60 seconds (LED blinks)
  • Alarm Output (R): N.C. / N.O. Selectable, Solid State Switch, 10 VDC, 0.01 A Max.
  • Trouble Output: N.C. / N.O. Selectable, Solid State Switch, 10 VDC, 0.01 A Max.
  • LED Indicator:
    • Disabled: During normal operation
    • Enabled: During WALK TEST or when LED SW is ON
    • Red: Warm-up, alarm and masking detection
    • Yellow: Warm-up and microwave detection
  • Operating Temperature: -20°C to +45°C (-4°F to +113°F)
  • Relative Humidity: 95% Max.
  • Installation Method (Indoor/Outdoor): Outdoor
  • Mounting Height: 0.8 – 1.2 m (2'7" – 3'11")
  • Weight: 600 g (17.7 oz.)
  • Accessories:
    • Screws (4 × 20 mm) × 2
    • Wiring sponge × 3
    • Masking seal × 3
  • Security Grade: IP55

Additional Information

Device Detector
Type OPTEX | VXI | RDAM Wireless | Outdoor
Enhance your outdoor security with the OPTEX VXI-RDAM Wireless Outdoor PIR. This dual-tech detector offers a 12 x 12m coverage area, low mount design, and is small pet friendly, ensuring reliable detection without false alarms. With adjustable detection levels and advanced noise immunity, it provides peace of mind while optimizing energy efficiency. Protect your property effortlessly today!
