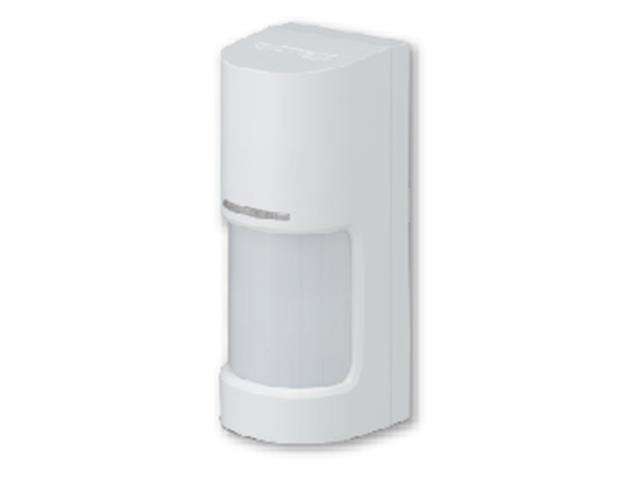

OPTEX WXI-ST

SKU: OPTEX WXI-ST

BRAND: Optex


🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
New Optex Infinity 180 ° Wired Outdoor Low Mount Detector Left & Right Independent Zones, 4 PYROS, Fully Adjustable, Low Mount at 1.2M Small, Pet Friendly

Wired Outdoor Low Mount Detector

Features

  • 180° field of view, 12 m range, PIR sensor for intruder detection
  • SMDA logic: digital analysis for better adaptation to the environment
  • Two independent detection zones: left and/or right
  • Individual adjustment of sensitivity level and detection range

Specifications

  • Detection Method: Passive Infrared (PIR)
  • Detection Coverage: 180° wide horizontal, 14 pairs / 2 vertical layers
  • Detectable Speed: 0.3 – 2.0 m/s (1' – 6'7"/s)
  • Sensitivity: 2.0°C (3.6°F) at 0.6 m/s; individually selectable for each side
  • Power Input: 9.5 – 18 VDC
  • Current Draw: 21 mA Max. at 12 VDC
  • Alarm Period: 2.0 ± 1.0 seconds
  • Warm-up Period: Approximately 60 seconds (LED blinks)
  • Alarm Output (R): 28 VDC, 0.1 A Max. (Individual: Right or General; N.O. or N.C. selectable)
  • Alarm Output (L): 28 VDC, 0.1 A Max. (Individual: Left or General; N.O. or N.C. selectable)
  • Tamper Output: N.C., 28 VDC, 0.1 A Max. (Opens when either the cover, main unit or base unit is removed)
  • LED Indicator: Red LED:
    • Warm-up
    • Alarm
  • Operating Temperature: -30°C to +60°C (-22°F to +140°F)
  • Relative Humidity: 95% Max.
  • Installation Method (Indoor/Outdoor): Outdoor
  • Mounting Height: 0.8 – 1.2 m (2'7" – 3'11")
  • Weight: 420 g (14.8 oz.)
  • Accessories:
    • Mounting screws (4 × 20 mm) × 2
    • Lock screw × 1
  • Security Grade: IP55

Additional Information

Device Detector
Experience unparalleled security with the OPTEX WXI-ST, a 180° wired outdoor detector designed for precision and flexibility. Its independent left and right zones, along with pet-friendly technology, ensure reliable motion detection without false alarms. Adjustable detection range up to 12M makes it perfect for any space, providing peace of mind with a 2-year warranty.
