PAL20L8-7PC

Name: PAL20L8-7PC - Communica [Part No: PAL20L8-7PC]
Brand: Communica
SKU: PAL20L8-7PC
Price: 25 ZAR
Availability: InStock

SKU: PAL20L8-7PC

BRAND: Communica

R 28.75_{(inc VAT)}
R 25.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Programmable Logic ICs

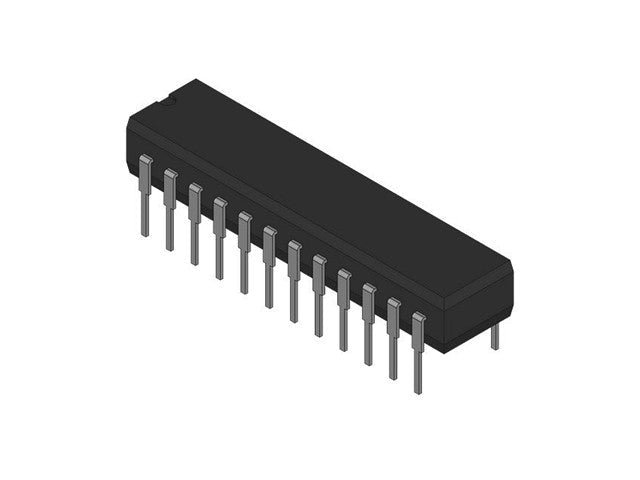

24-Pin TTL Programmable Array Logic 24PIN DIP

Specifications

Output Function	COMBINATORIAL
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Style	IN-LINE
Power Supplies	5
Propagation Delay	10.0 ns
Seated Height-Max	5.08 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Nom	5.0 V
Supply Voltage-Min	4.75 V
Supply Voltage-Max	5.25 V
Surface Mount	NO
Technology	TTL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Length	30.734 mm
Width	7.62 mm

Downloads

Datasheet - PAL20L8-7PC

Additional Information

Device

TTL Programmable

Unlock the power of advanced logic design with the PAL20L8-7PC 24-Pin TTL Programmable Array Logic. This high-performance device offers rapid 10 ns propagation delay, ensuring efficient processing for your projects. With its reliable 5V supply voltage and dual terminal form, it's perfect for enhancing your electronic applications. Elevate your designs with this versatile, durable logic solution today!
