PC260

SKU: PC260

BRAND: AMP

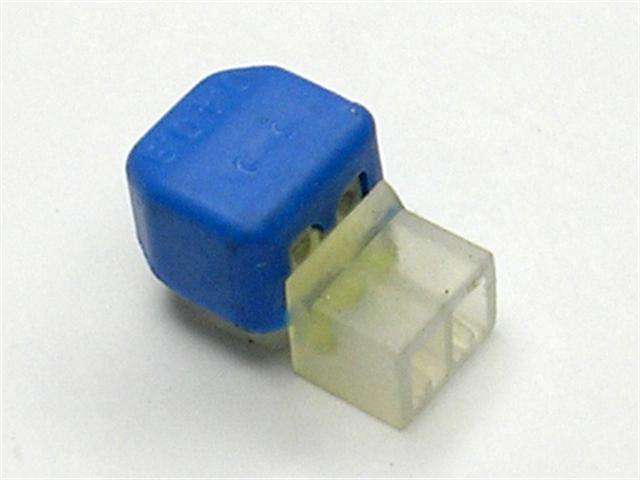

2-Way Tel-Splice Telephone Cable Connector with Scotchlock

Overview

 Tel-Splice connectors for splicing telephone cable conductors. These Tel-Splice connectors have an IDC contact, chemical and moisture resistant housings and accept any combination of solid copper wire from 0.4 to 0.9mm². Straight, bridge, and half-tap splices can also be made with these connectors. The wire entry ports of these Tel-Splice connectors extend to rear of housing, which prevents two wires sliding into one contact position.

Features

Specification



  • Operating Voltage : 50V max., 140V pk
  • Contacts : Phosphor Bronze, tin plated
  • Housing : Clear Polycarbonate
  • Wire Size : 26-19awg (0.4-0.9mm dia)
  • Cable Insulation : 1.63mm dia. max.
  • Temperature Range : -10°C to +65°C
