BRAND: Paradox

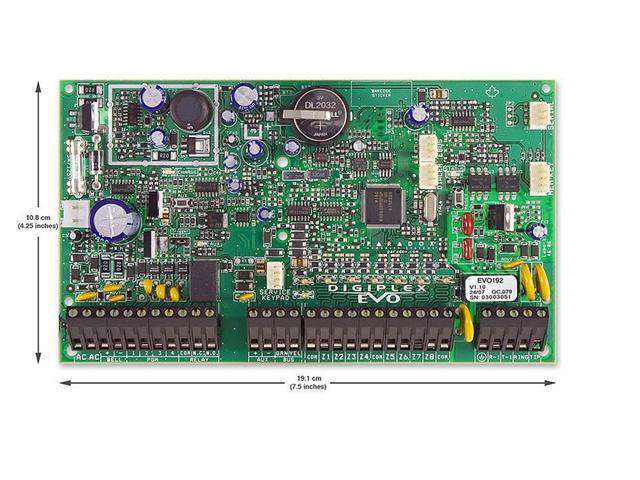

1.7A 8 Zone On-board Control Panel Expandable to 192 Zones with 8 true partitions and 9 user codes


Digiplex EVO systems (EVO192) provide the highest level of protection for banks, high-security military and government sites, luxurious residential homes and any place where maximum security is essential. The modular concept of these systems provide installers with labour-saving features that make expanding, installing and servicing these systems quick and convenient - 8 On-board zones expandable to 48/192 via 4-wire combus - 4(EVO48) or 8(EVO192) true partitions - 96(EVO48) or 9(EVO192) user codes - 5 On-board PGM's - Up to 254 expansion modules -Built-in Access control features - Up to 2048 events buffered - Up to 96(EVO48) or 999(EVO192) remote controls - Direct connect with USB and Winload software User management NEWare software


  • 8 on-board zones
  • Built-in access control features
  • Supports PCS Series, IP Module
  • In-field firmware upgrade via 307USB, Babyware and WinLoad
  • Selectable input resistors for EOL and Tamper
  • Compatible with NEware V4.0 or higher
  • Automatic Daylight Savings Time feature
  • PGM1 can be used as a 2-wire smoke input
  • Program remote controls using the master or installer codes
  • Built-in real-time clock backup battery
  • 1.7A switching power supply
  • 1 supervised bell output, auxiliary output and telephone line
  • Patented 2 opto coupler dialer circuit - the most reliable dialer in the industry
  • Push button software reset
  • Push button to activate or deactivate the Auxiliary output
  • Fits in a 28cm x 28cm x 7.6cm metal box
  • The EVO series share the same programming for easy panel substitution
