PDX KIT PA1084
SKU: PDX KIT PA1084
BRAND: Paradox
R 2,075.75 (inc VAT) R 1,805.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

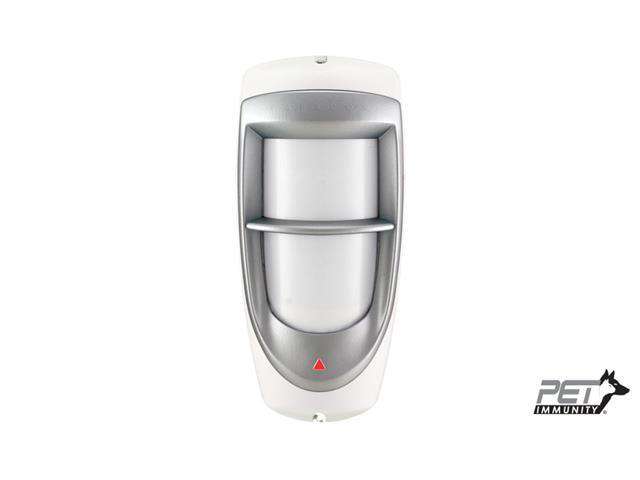

Paradox DG85 (B4U) Hardwired PIR "Kit" & Bracket {PA1084} - Horizontal Lens
DG85 (B4U) Hardwired PIR
Features
Special weatherproof design
Available with 1 of 3 lenses (see page 48 for more details): Pet Array, Horizontal Curtain Beam, or Vertical Curtain Beam lens
Impact and temperature resistant casing, with UV protected lens
Operates at -35°C to +50°C (-31°F to +122°F)
Casing lined with an injected rubber gasket
Dual-optical Filtering System and Digital Dual-opposed Detection
Multi-level sensitivity adjustment
2 operational modes (addressable for EVO or conventional relay)
Compatible with the Heavy-duty Outdoor Swivel Bracket (SB85; see page 47)
Extremely reliable and false-alarm free
Dual-optics (2 dual-opposed element sensors)
Provides superior pet immunity using a patented combination of advanced optics and digital processing technologies
Immune to pets weighing up to 40 kg (90 lb.)
11 x 11 m (35 x 35 ft.), with 90° viewing angle• Patented Digital Motion Detection (no analog circuitry)*
Patented Auto Pulse Signal Processing
Digital Shield algorithm software
Automatic temperature compensation
Single or dual-edge processing
Connect to the Digiplex EVO 4-wire bus directly
Metal shield maximizes protection from EMI and RFI signals*
Downloads
Additional Information
Device
PIR
Input Voltage
9~16VDC
Detection Range
3~18m (adjustable) 90° 20Kg Pet Immunity
Enhance your security with the PDX KIT PA1084, featuring a hardwired PIR sensor designed for extreme conditions. With advanced pet immunity and a robust weatherproof casing, it ensures reliable performance from -35°C to +50°C. Enjoy customizable sensitivity and dual-optical detection for superior motion monitoring, making it the perfect choice for any outdoor space.
