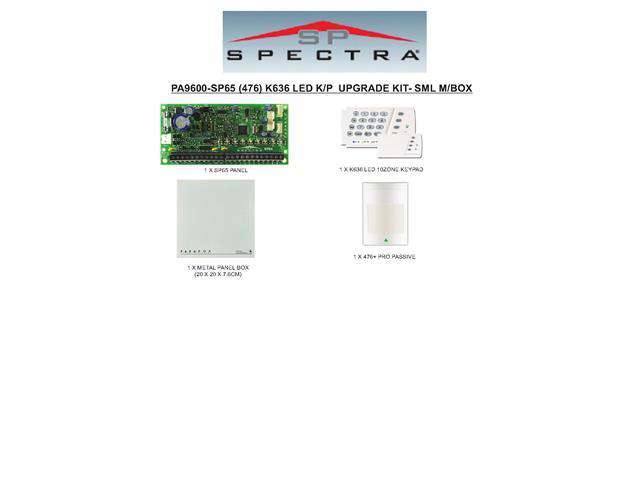

PDX KIT PA9600

SP65: 9 to 32-Zone Control Panel

Update: supports LCD keypads K32LCD and K32LX

• 9 on-board zones (18 with ATZ); expandable to 32 zones
• Supports REM3, two-way communication (requires RTX3, V1.31 or higher)
• 3 PGM outputs
• No landline dialer (IP and/or GPRS only)• Supports StayD
• 4-wire expansion bus (connect up to 15 keypads)
• Supports up to 16 PGMs
• 2 partitions (1 partition when used with K636 keypad)
• 32 user codes
• Supports GPRS and GSM Module (PCS series), IP Module (IP100), and Voice Module (VDMP3)
• 1.1A switching power supply
• In-field firmware upgradable via 307USB
• Menu-driven programming for the Installer, Master, and Maintenance codes
• Phone #s: 3 for monitoring station, 5 for personal dialing, and 1 for pager reporting
• Automatic Daylight Savings Time feature
• Push-button software reset (reset to default values and restart)
• Direct connect at 9.6K baud with BabyWare
• 256 events buffered
• Supports REM3, one-way communication only (requires RTX3, V1.31 or higher)
• Supports RX1 Wireless Receiver, as well as RTX3 Wireless Expansion Module
