PDX PGM4M

Name: PDX PGM4M - Communica [Part No: PDX PGM4M]
Brand: Paradox
SKU: PDX PGM4M
Price: 1726.09 ZAR
Availability: InStock

SKU: PDX PGM4M

BRAND: Paradox

R 1,985.00_{(inc VAT)}
R 1,726.09_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Expanders and Accessories

Paradox PGM4M Wireless Indoor 4 Zone Output Expander for M25, RF FREQ:868MHZ, I/P:12~13.8VDC/1A, Internal Battery:1x3.7V Li-Ion Batt 5000mAh, Auto Learn, Temp Sensor, Manual Control For Each Output {PA6802}

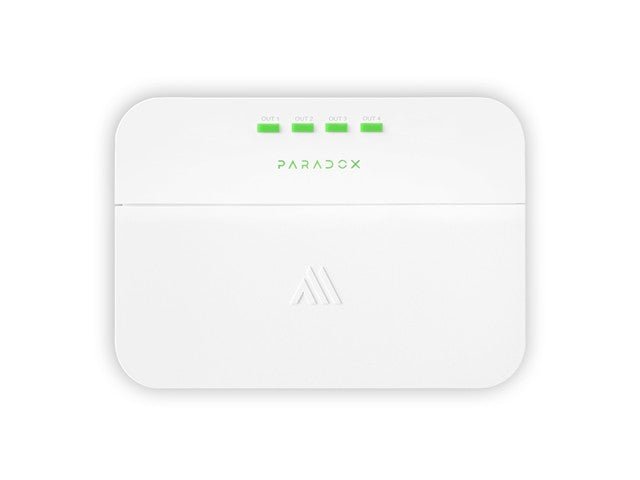

Wireless Indoor 4 Zone Output Expander

Features

Wireless 4-programmable outputs expander
24V / 1A max switched per output
Manual control for each output
Temperature sensor
12V power, rechargeable lithium battery up to 10 days, 5000 mAh (optional)
Certifications: CE, FCC 15.247

Specifications

Power Input	12–13.8VDC / 1A
Wireless Type	GFSK two-way with frequency and encryption hopping
RF Frequency	868 (865.05–867.95) MHz or 914 (902.25–927.55) MHz — might vary by country
RF Power	868 MHz: +14 dBm radiated; 914 MHz: up to +22 dBm in permitted countries
Number of Outputs	PGM8M – 8 outputs PGM4M – 4 outputs
Status Indicators (In Application)	Output status, tamper status, power supply, battery level, temperature, TX/RX values
Status Indication (Logo)	Online/offline, battery/power operation, upgrade in process, tamper, output status (active/inactive)
Battery	1 × 3.7V Li-ion (5000mAh) rechargeable — up to 10 days (optional)
Transmission Time	Less than 20 ms
Supervision Time	20 minutes, 10 minutes (Default), and 3 minutes
Installation Environment	Indoor
Firmware Upgrade	Remotely over the air via BlueEye
Operating Temperature	-20°C to +50°C (–4°F to 122°F)
Battery Charging Temperature	0°C to +40°C (32°F to 104°F)
Auto Learn	Yes
Colors	White
Dimensions	18W × 13H × 4.5D cm (7.09″ W × 5.12″ H × 1.79″ D)
Weight	0.36 kg with battery
Certification	CE, FCC 15.247

Downloads

Installation Manual - PDX PGM4M

Additional Information

Device	Expander
Type	Wireless \| Indoor \| 4 Zone \| Output

Enhance your home security with the PDX PGM4M Wireless Indoor 4 Zone Output Expander. Featuring 4 programmable outputs, a temperature sensor, and a rechargeable battery lasting up to 10 days, this device offers seamless control and monitoring for ultimate peace of mind. Easy to install and designed for indoor use, it’s the perfect solution for a smarter, safer home.
