PDX PGM8M

Name: PDX PGM8M - Communica [Part No: PDX PGM8M]
Brand: Paradox
SKU: PDX PGM8M
Price: 2985 ZAR
Availability: InStock

SKU: PDX PGM8M

BRAND: Paradox

R 3,432.75_{(inc VAT)}
R 2,985.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Expanders and Accessories

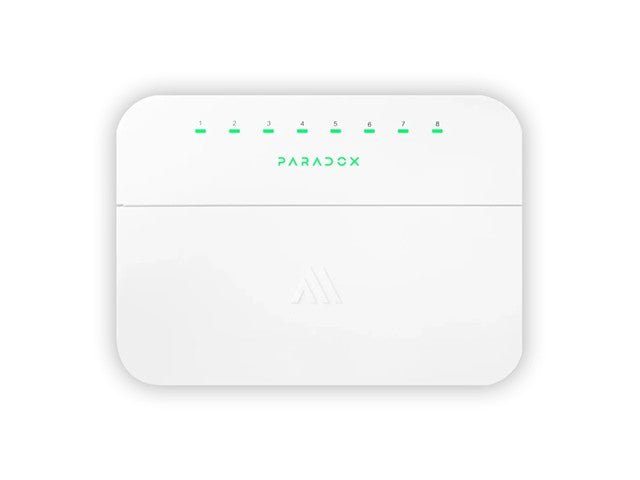

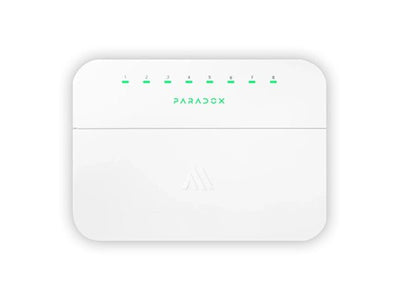

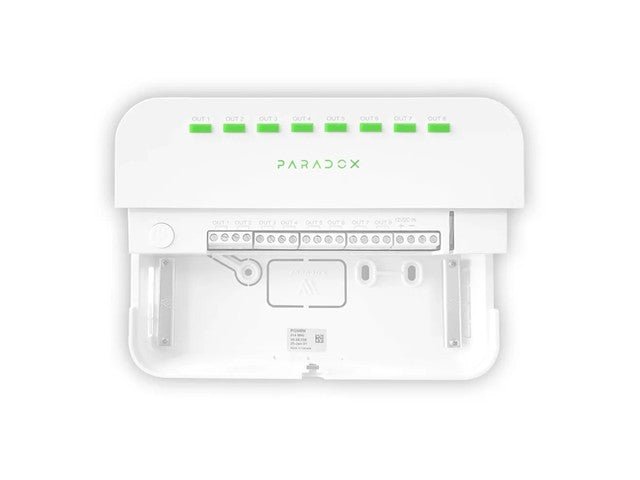

Paradox PGM8M Wireless Indoor 8 Zone Output Expander for M25, RF FREQ:868MHZ, I/P:12~13.8VDC/1A, Internal Battery:1x3.7V LI-ION BATT 5000mAh, Auto Learn, Temp Sensor, Manual Control for Each Output {PA6803}

Wireless Indoor 8 Zone Output Expander

Features

Wireless 8-programmable outputs expander
24V/1A max switched each output
Manual control for each output
Temperature sensor
12V power, rechargeable lithium battery up to 10 days, 5000mAh (optional)
Certifications: CE, FCC 15.247

Specifications

Power Input	12–13.8VDC / 1A
Wireless Type	GFSK two-way with frequency and encryption hopping
RF Frequency	868 (865.05 – 867.95) MHz or 914 (902.25 – 927.55) MHz (May vary by country)
RF Power	868 MHz: +14 dBm radiated, 914 MHz: +22 dBm in permitted countries
Number of Outputs	8 Relay Output Rating (per output) – 30V / 2A
Status Indicators in Application	Output status indications, tamper status, power supply, battery level, temperature, TX/RX values
Status Indication (Logo)	Online, offline, battery or power operation, upgrade in process, tamper Output status indicators: activated/deactivated
Internal Battery	1 × 3.7V Li-ion battery with up to 10 days of battery life — 5000 mAh (optional)
Transmission Time	Less than 20ms
Supervision Time	20 minutes, 10 minutes (Default), and 3 minutes
Installation Environment	Indoor
Firmware Upgrade	Remotely over the air, via BlueEye
Operating Temperature	-20°C to 50°C (–4°F to 122°F)
Battery Charging Temperature	0°C to 40°C (32°F to 104°F)
Auto Learn	Yes
Colors	White
Dimensions	18W x 13H x 4.5D cm (7.09″ W x 5.12″ H x 1.79″ D)
Weight	0.36 Kg with battery

Downloads

Datasheet - PDX PGM8M

Additional Information

Device	Expander
Type	Wireless \| Indoor \| 8 Zone \| Output

Enhance your home automation with the PDX PGM8M Wireless Indoor 8 Zone Output Expander. Featuring eight programmable outputs, a built-in temperature sensor, and a rechargeable battery lasting up to 10 days, this device offers unparalleled control and convenience. Its wireless technology ensures seamless integration, making it the perfect solution for efficient smart home management.
