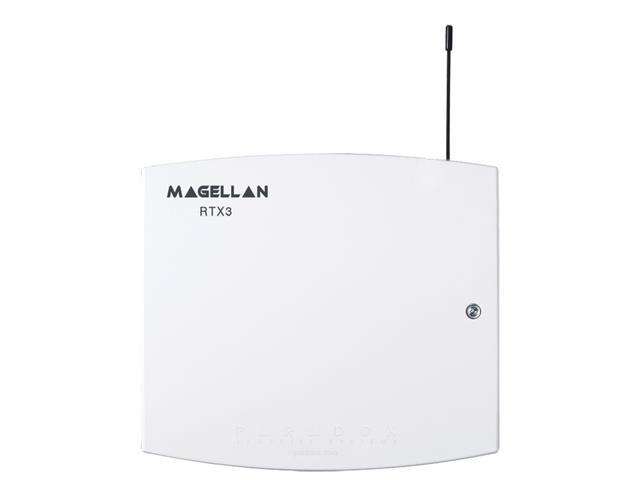

RTX3R2 Wireless Transc. with REM2 868MHz {PA3809F}
32 Zone Wireless Expansion Module
Features
Supports StayD (Version 2.0 or higher)
System Status Memory: The REM2 will keep the last system status received from the control panel in memory. Momentarily press the Info button to display the last system status--even when out of range. Used to confirm the last action you did on the system while away from the system.
Built-in transceiver (868 MHz)
Displays system status using visual (LED) and auditory feedback
Press the Status button at any time to receive the system status
Perform up to 6 different actions per remote control
Compact, water-resistant design with backlight for buttons
Specifications
32 wireless addressable zones
Maximum number of remote controls: 999 with EVO Series, 32 with Spectra SP Series
Supports wireless PGMs (8 with EVO Series, 16 with Spectra SP Series only)
Supports SR230 Wireless Sirens
Supports all Magellan transmitters including 2WPGM
Supports 2 RPT1 and 8 K37 (Spectra SP Series only)
Remote control compatibility: REM101, REM2, and REM25
3 PGM outputs and 1 optional output
PGM outputs: PGM1 and PGM2 - 150 mA PGM transistor outputs
PGM3 - Form C relay output rated at 5A / 28 Vdc, N.O. / N.C. (PGM4 optional)
Low battery, tamper and check-in supervision for reconnected modules
Transmitter signal strength display
Noise level test and indicator
RF jamming supervision
In-field firmware upgradeable via 307USB
The REM2 is a water-resistant 5-button remote control that provides the user with the status of their system by pressing the [ i ] button. The remote control provides both auditory and visual feedback in an attractive streamlined style.
Additional Information
Device
Module
Enhance your security system with the PDX RTX3R2 Wireless Transmitter (868MHz). Compatible with top brands like Imperial and Digiplex EVO, it supports up to 32 wireless zones and 4,000 remote controls, ensuring comprehensive coverage. With advanced features like RF jamming supervision and easy firmware upgrades, this reliable transmitter keeps your home safe and secure. Upgrade your peace of mind today!
