PICAXE-08 MOTOR DRIVER BOARD

SKU: PICAXE-08 MOTOR DRIVER BOARD

BRAND: Picaxe


Picaxe-08 Motor Driver Board with 4 Digital or 2 Reversible Power Outputs and 1 or 2 Digital Input Controls

Overview

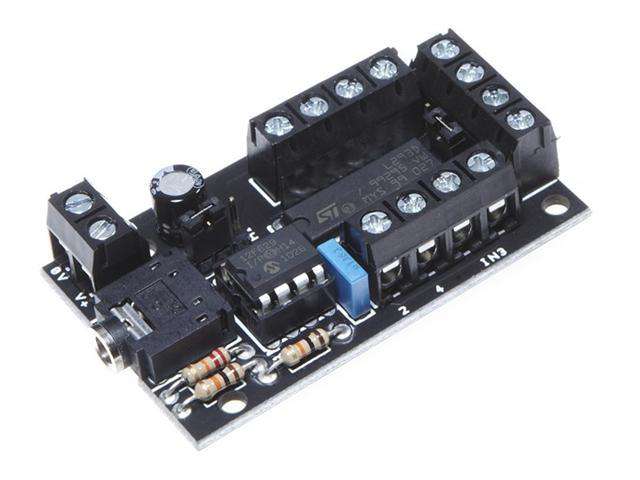

A project board for the PICAXE-08M2 microcontroller with four digital or two reversible power outputs and one or two digital input controls.

The outputs can be used individually to driver electronic devices such as buzzers and signal lamps and can also be used in pairs to give forward, reverse and stop control of motors, allowing the board to drive up to two motors.

The digital input may be connected directly to an input switch or microswitch (multiples of which may be connected in parallel), to an infra-red receiver for remote control operation, or be controlled by another PICAXE.

The project board can be used with any 8 pin PICAXE chip (PICAXE-08M2 and L293D ICs provided) and can be used with any software application that supports the PICAXE hardware.
