PKI100 BLACK

Name: PKI100 BLACK - Communica [Part No: PKI100 BLACK]
Brand: SKS Hirschmann
SKU: PKI100 BLACK
Price: 113.75 ZAR
Availability: InStock

SKU: PKI100 BLACK

BRAND: SKS Hirschmann

In Stock
R 130.81_{(inc VAT)}
R 113.75_{(ex VAT)}

Collections: SKS Hirschmann, Test & Measurement

Type: Test Plugs & Sockets

Category: Binding Post

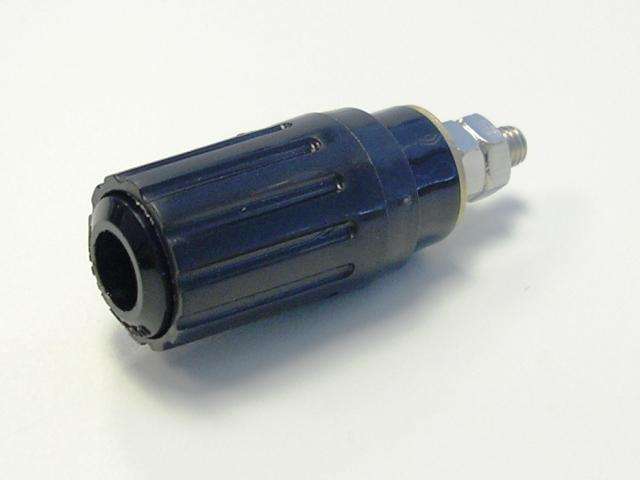

4mm Binding Post 35A • Black

Overview

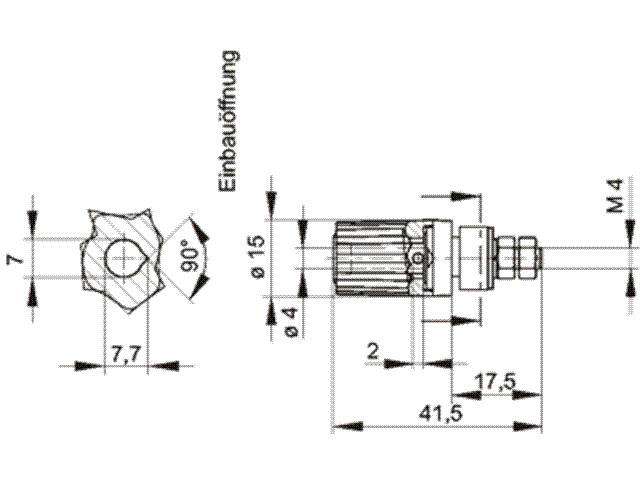

Pole terminal with captive insulated head, which is held under constant pressure against the insulated rings by a spring. 4 mm diameter nickel-plated, brass threaded bolt with 2 mm diameter transverse hole. For non-rotating installation in switchpanels and equipment chassis with wall thickness up to 3.5 mm.

Features

Fully Insulated
15mm Head diameter
Screw Thread M4 bore with 2xM4 nuts

Specification

Colour	Black
Size	4mm

Downloads

Datasheet Download
