PKI10A BLACK - Test Plugs & Sockets - 4002044169886

PKI10A BLACK

Name: PKI10A BLACK - Communica [Part No: PKI10A BLACK]
Brand: SKS Hirschmann
SKU: PKI10A BLACK
Price: 65 ZAR
Availability: InStock

SKU: PKI10A BLACK

BRAND: SKS Hirschmann

R 74.75_{(inc VAT)}
R 65.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: SKS Hirschmann, Test & Measurement

Type: Test Plugs & Sockets

Category: Binding Post

4mm Binding Post 35A Hirschmann (930 103 100)

4mm Binding Post

Overview

Pole terminal with claw edge and captive insulated head and insulated ring. 4 mm diameter nickel-plated brass threaded bolt with 2 mm diameter transverse hole. For insulated, non-rotating installation in equipment chassis and switchpanels with a wall thickness up to 2 mm.

Specifications

Product Type: Pole Clamp
Connecting Components: Screw
Color: Black
Type of Insulation: Fully Insulated
Contents: 1 pc.
Rated Current: 35 A
Rated Current (Rounded): 35 A

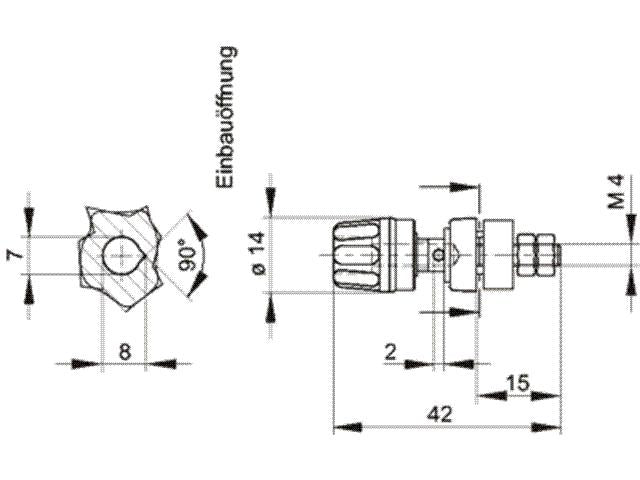

Dimensions (Ø × L): 14 mm × 42 mm
Manufacturer's Catalog Number: 930103105
Manufacturer's Catalog Model: PKI 10 A
Material Specification: Threaded Pin – Nickel-Plated Brass
Nominal Voltage: 60 V
Product Length: 42 mm
Product Diameter: 14 mm
RoHS Compliant: Yes
Pin Diameter: 4 mm
Contact Resistance: 2 mΩ
Wall Thickness: 2 mm
Connection: Screw Connection

Downloads

Specifications

Additional Information

Device

Binding Post

Discover the PKI10A BLACK 4mm Binding Post, designed for secure and insulated installations in equipment chassis and switch panels. With its durable nickel-plated brass construction and fully insulated design, this binding post ensures reliable performance and safety. Perfect for projects requiring a non-rotating connection, it combines functionality with a sleek black finish. Upgrade your electrical setups with this essential component today!
