PKI10A BLUE

Name: PKI10A BLUE - Communica [Part No: PKI10A BLUE]
Brand: SKS Hirschmann
SKU: PKI10A BLUE
Price: 65 ZAR
Availability: InStock

SKU: PKI10A BLUE

BRAND: SKS Hirschmann

R 74.75_{(inc VAT)}
R 65.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: SKS Hirschmann, Test & Measurement

Type: Test Plugs & Sockets

Category: Binding Post

4mm Binding Post 35A Hirschmann (930 103 102)

Overview

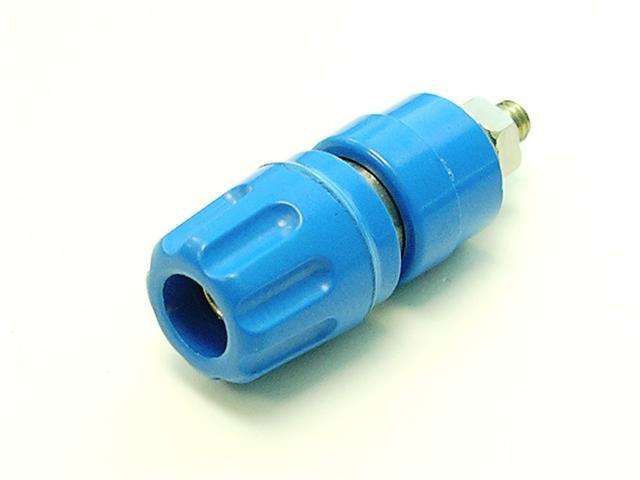

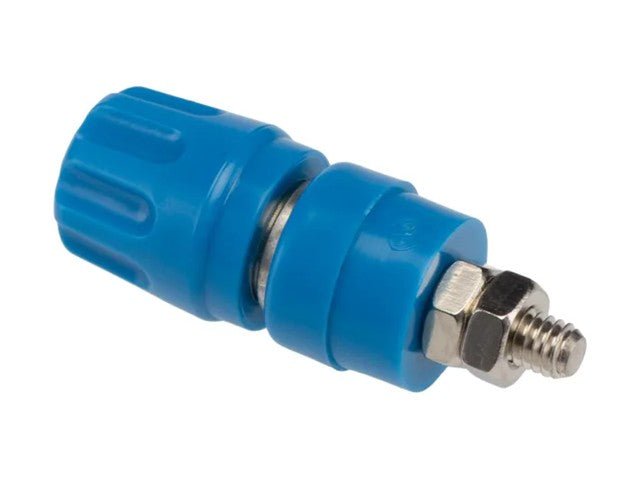

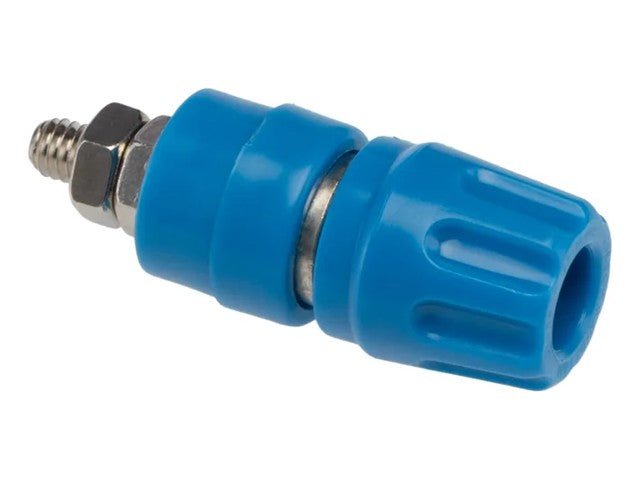

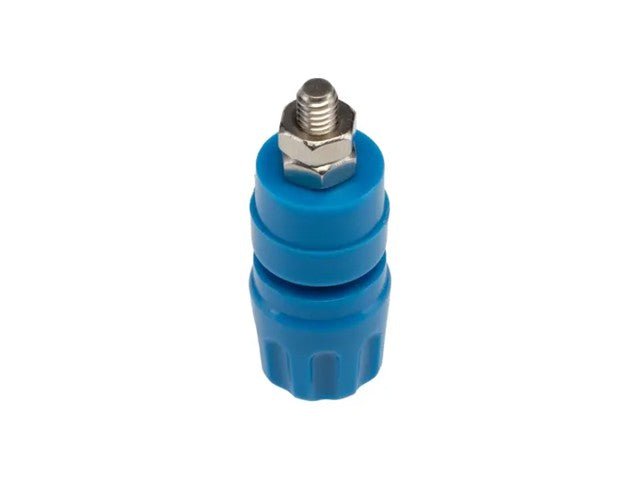

Pole terminal with claw edge and captive insulated head and insulated ring. 4 mm diameter nickel-plated brass threaded bolt with 2 mm diameter transverse hole. For insulated, non-rotating installation in equipment chassis and switchpanels with a wall thickness up to 2 mm.

Specifications

Product Type: Pole Clamp
Connecting Components: Screw
Color: Blue
Type of Insulation: Fully Insulated
Contents: 1 pc.
Rated Current: 35 A
Rated Current (Rounded): 35 A

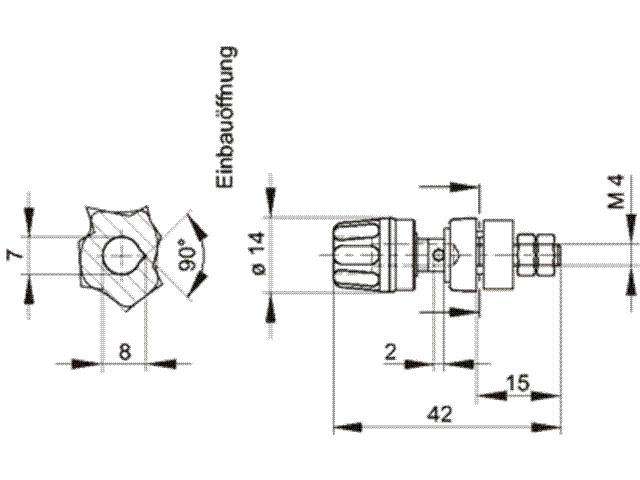

Dimensions (Ø × L): 14 mm × 42 mm
Manufacturer's Catalog Number: 930103105
Manufacturer's Catalog Model: PKI 10 A
Material Specification: Threaded Pin – Nickel-Plated Brass
Nominal Voltage: 60 V
Product Length: 42 mm
Product Diameter: 14 mm
RoHS Compliant: Yes
Pin Diameter: 4 mm
Contact Resistance: 2 mΩ
Wall Thickness: 2 mm
Connection: Screw Connection

Downloads

Specifications

Additional Information

Device	4mm Binding Post
Type	35A

Discover the PKI10A Blue 4mm Binding Post, designed for secure, insulated connections in equipment chassis and switch panels. With a durable nickel-plated brass bolt and a fully insulated head, this reliable terminal ensures non-rotating installation for optimal safety and performance. Elevate your projects with this essential component today!
