PKI10A GREEN

Name: PKI10A GREEN - Communica [Part No: PKI10A GREEN]
Brand: SKS Hirschmann
SKU: PKI10A GREEN
Price: 65 ZAR
Availability: InStock

SKU: PKI10A GREEN

BRAND: SKS Hirschmann

R 74.75_{(inc VAT)}
R 65.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: SKS Hirschmann, Test & Measurement

Type: Test Plugs & Sockets

Category: Binding Post

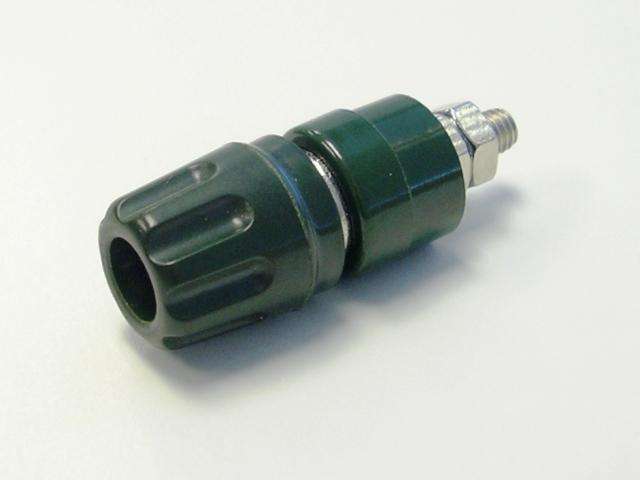

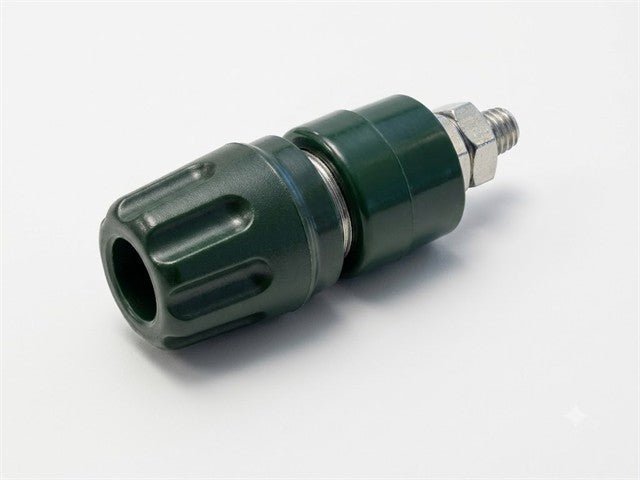

4mm Binding Post 35A Hirschmann (930 103 104)

4mm Binding Post

Overview

Pole terminal with claw edge and captive insulated head and insulated ring. 4 mm diameter nickel-plated brass threaded bolt with 2 mm diameter transverse hole. For insulated, non-rotating installation in equipment chassis and switchpanels with a wall thickness up to 2 mm.

Specifications

Product Type: Pole Clamp
Connecting Components: Screw
Color: Green
Type of Insulation: Fully Insulated
Contents: 1 pc.
Rated Current: 35 A
Rated Current (Rounded): 35 A

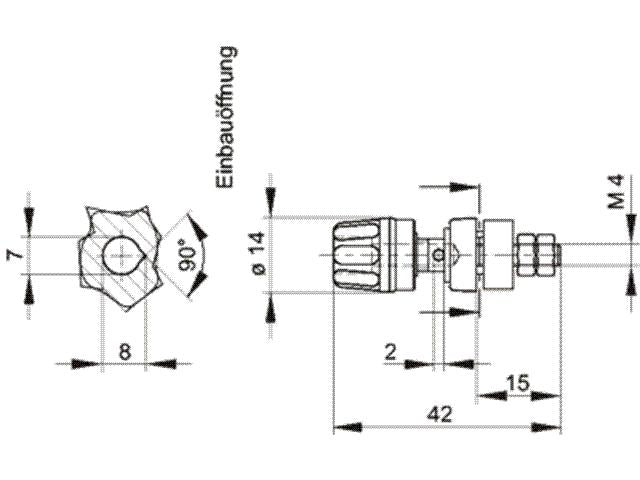

Dimensions (Ø × L): 14 mm × 42 mm
Manufacturer's Catalog Number: 930103105
Manufacturer's Catalog Model: PKI 10 A
Material Specification: Threaded Pin – Nickel-Plated Brass
Nominal Voltage: 60 V
Product Length: 42 mm
Product Diameter: 14 mm
RoHS Compliant: Yes
Pin Diameter: 4 mm
Contact Resistance: 2 mΩ
Wall Thickness: 2 mm
Connection: Screw Connection

Downloads

Specifications

Additional Information

Device

Binding Post

Enhance your equipment with the PKI10A GREEN 4mm Binding Post. Designed for secure, insulated installations in chassis and switch panels, this durable nickel-plated brass terminal ensures reliable performance and safety. Its captive head and claw edge provide a non-rotating solution for easy connectivity and maintenance.
