PKI10A RED - Test Plugs & Sockets - 4002044169879

PKI10A RED

Name: PKI10A RED - Communica [Part No: PKI10A RED]
Brand: SKS Hirschmann
SKU: PKI10A RED
Price: 65 ZAR
Availability: InStock

SKU: PKI10A RED

BRAND: SKS Hirschmann

R 74.75_{(inc VAT)}
R 65.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: SKS Hirschmann, Test & Measurement

Type: Test Plugs & Sockets

Category: Binding Post

4mm Binding Post 35A Hirschmann (930 103 101)

4mm Binding Post

Overview

Pole terminal with claw edge and captive insulated head and insulated ring. 4 mm diameter nickel-plated brass threaded bolt with 2 mm diameter transverse hole. For insulated, non-rotating installation in equipment chassis and switchpanels with a wall thickness up to 2 mm.

Specifications

Product Type: Pole Clamp
Connecting Components: Screw
Color: Red
Type of Insulation: Fully Insulated
Contents: 1 pc.
Rated Current: 35 A
Rated Current (Rounded): 35 A

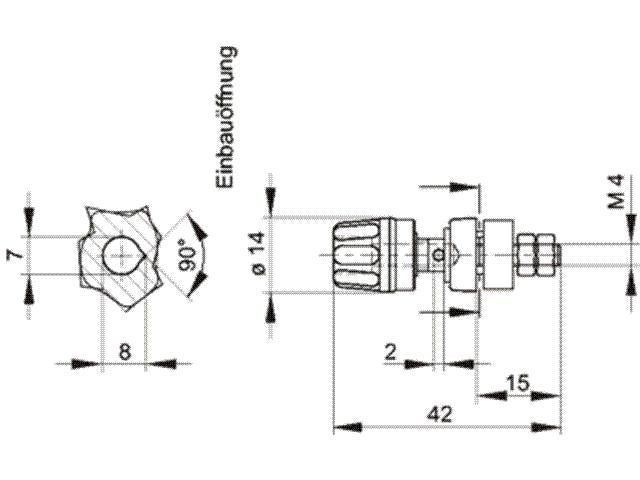

Dimensions (Ø × L): 14 mm × 42 mm
Manufacturer's Catalog Number: 930103105
Manufacturer's Catalog Model: PKI 10 A
Material Specification: Threaded Pin – Nickel-Plated Brass
Nominal Voltage: 60 V
Product Length: 42 mm
Product Diameter: 14 mm
RoHS Compliant: Yes
Pin Diameter: 4 mm
Contact Resistance: 2 mΩ
Wall Thickness: 2 mm
Connection: Screw Connection

Downloads

Specifications

Additional Information

Device

Binding Post

Elevate your equipment with the PKI10A RED 4mm Binding Post. Featuring a fully insulated design and durable nickel-plated brass, this terminal ensures secure, non-rotating installations in switch panels and chassis. Perfect for reliable connectivity, it's the ideal choice for your electrical projects.
