True-RMS Measurement: Ensures accurate AC voltage and current readings, even for non-sinusoidal and distorted waveforms.
Auto & Manual Ranging: Automatically selects the best range for precise measurements or allows manual range selection for specific testing needs.
100mF Capacitor Test: Supports high-capacity capacitor testing, making it ideal for electronic circuit diagnostics and component testing.
NCV (Non-Contact Voltage) Detection: Quickly detects live wires and AC voltage presence without direct contact, enhancing safety.
Live Wire Test: Identifies live and neutral wires efficiently, reducing the risk of electrical hazards.
Large LCD Display: Clear and easy-to-read backlit screen for use in dimly lit environments.
Data Hold Function: Allows users to freeze the displayed measurement for easy recording and analysis.
Auto Power Off: Conserves battery life by automatically shutting down the meter after a period of inactivity.
Overload Protection: Enhanced safety features protect the device and the user from excessive voltage or current exposure.
Durable Build: Designed for rugged use with a sturdy, shock-resistant casing to withstand demanding work environments.
Applications:
Electrical troubleshooting and diagnostics
Circuit board and component testing
Industrial and household electrical maintenance
Automotive electrical testing
Educational and laboratory use
Overview

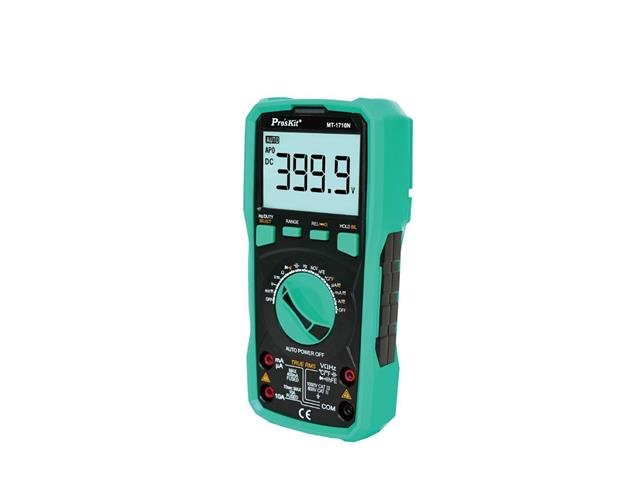

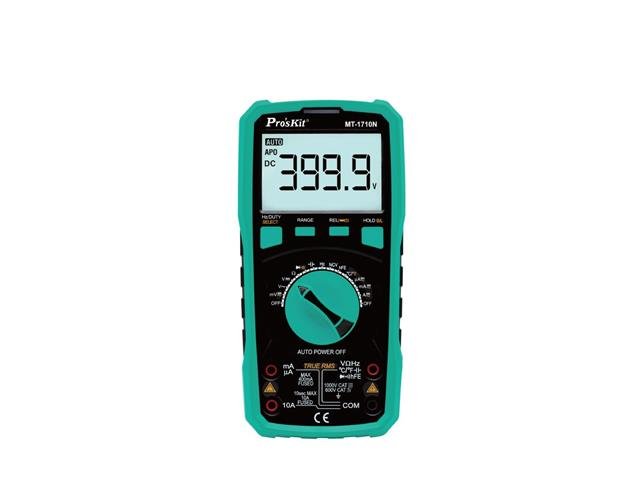

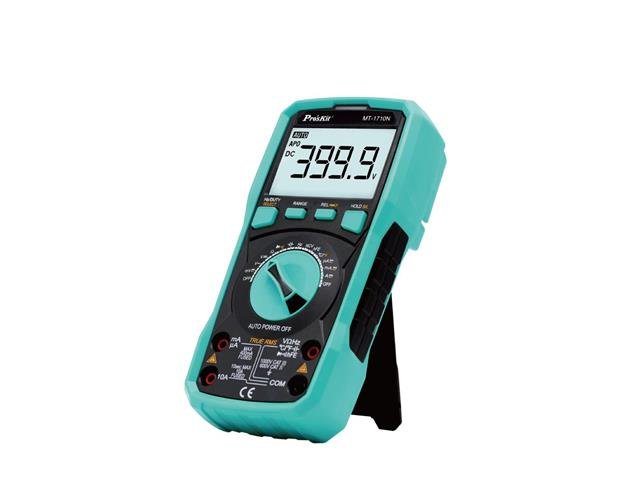

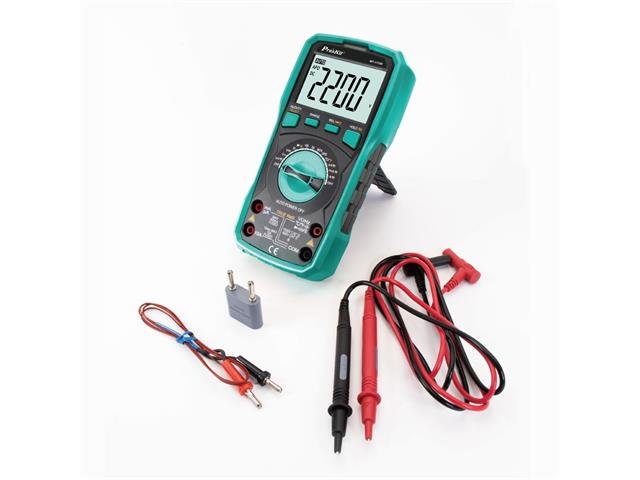

The PRK MT-1710N is a high-precision True-RMS Auto Range Multimeter, designed for professional electricians, engineers, and DIY enthusiasts. This advanced digital multimeter provides accurate and reliable measurements with a 3-3/4 digit display (3999 counts), offering superior performance for a wide range of electrical testing applications. The PRK MT-1710N combines precision, versatility, and safety, making it an essential tool for professionals and hobbyists alike
Specifications
Display:
3 3/4-digit LCD with 3,999 counts
Digit height: 42 mm
Backlight for enhanced visibility
Measurement Functions:
DC Voltage (DCV): Ranges from 400 mV to 1000 V with an accuracy up to ±(0.5% + 4 digits)
AC Voltage (ACV): Ranges from 400 mV to 750 V (True-RMS) with an accuracy up to ±(1.0% + 10 digits); frequency response: 40 Hz to 1 kHz
DC Current (DCA): Ranges from 400 µA to 10 A with an accuracy up to ±(1.0% + 10 digits)
AC Current (ACA): Ranges from 400 µA to 10 A (True-RMS) with an accuracy up to ±(1.5% + 10 digits); frequency response: 40 Hz to 1 kHz
Resistance: Ranges from 400 Ω to 40 MΩ with an accuracy up to ±(0.8% + 4 digits)
Capacitance: Ranges from 10 nF to 100 mF with an accuracy up to ±(3.5% + 8 digits)
Frequency: Ranges from 100 Hz to 30 MHz with an accuracy of ±(0.5% + 10 digits)
Temperature: Measures from -20°C to 1000°C (-4°F to 1832°F) with an accuracy up to ±(1.0% + 5 digits)
