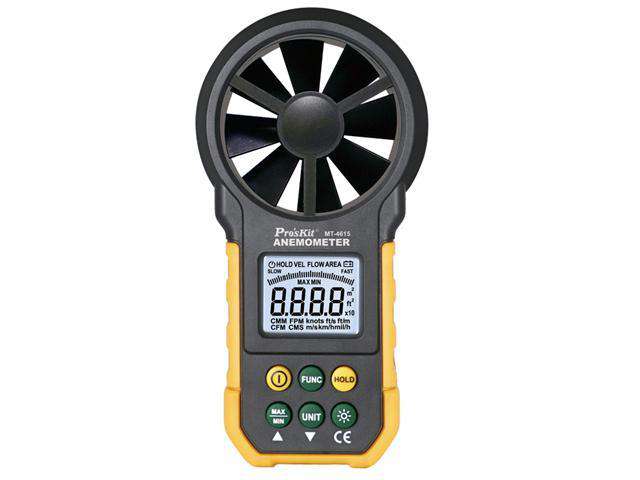

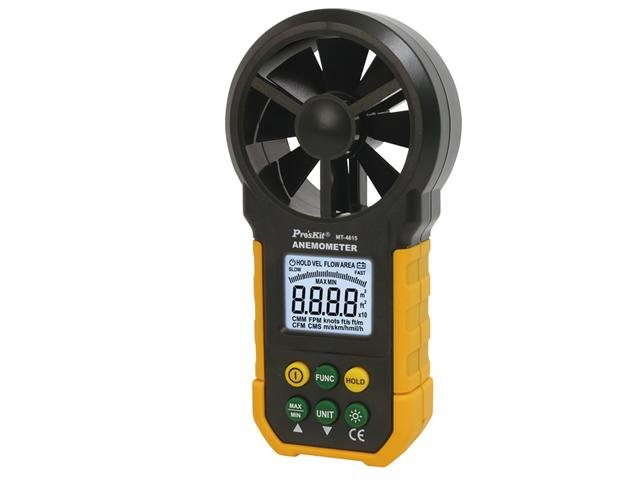

PRK MT-4615

Ideal for ventilation, sailing, flight energy, air conditioning systems, petrochemical industry and more.

• Measuring air velocity and air volume
• Large LCD backlight for easy reading even in dark area
• Variety of units to choose from.
• Extra functions: Max./Min. value, Low battery indication, Auto power off, Date hold

• Measuring range : 0.8~40m/s
• Accuracy
• 0.80~30.00 m/s, 1.40~108.00 km/h, 1.30~98.50 ft/s, 0.80~58.30 knots,
• 0.90~67.20 mil/h, 78~5900 ft/m, ±(2.0% + 50D)
• 30.00~40.00 m/s, 108.0~144.0 km/h, 98.50~131.20 ft/s,
• 58.30~77.70 knots, 67.20~90.00 mil/h, 5900~7874 ft/m,(only for reference)
• Resolution : 0.01m/s, 0.01km/h, 0.01 ft/s, 0.01knots, 0.01mile/h, 1ft/m
• Unit
• Air Velocity : m/s, km/h, mil/h, ft/m, ft/s, knots
• Air Volume : CMS (m3/s), CMM m3/min, CFM (ft³/min)
• 30~40m/s only for reference
• Sensor : Conventional arm angle to the impeller
• Sampling time : 0.4s
• Auto power off : 10 minutes (adjustable)
• Low battery indication : <7V
• Operation environment : 0~85%RH, 0°C~40°C(no condense)
• Fan Operation environment : 0~95%RH, -20°C~80°C(no condense)
• Storage environment : 0~80%RH, -20°C~80°C(no condense)
• Operating altitude : Max. 2000m
• Power source : 9V 6F22 (not included)
• Weight : 154 g (w/o battery)
• Dimension : 170 x 85 x 40mm
• Accessories : Pouch bag, user manual

Datasheet Download
