PRK MT-7508

SKU: PRK MT-7508

BRAND: Proskit

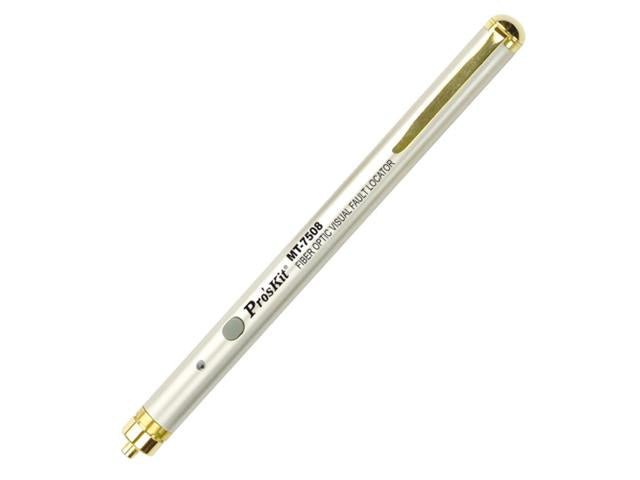

MT-7508 :: Fiber Optic Visual Fault Locator

Overview

Features

  • Simple, versatile, and user-friendly design
  • Rugged, compact, and splash proof copper housing
  • Three operation modes available: “CW” (Continuous wave output), “Pulse” and “Off” modes
  • Continuous wave output mode (CW) for steady fault illumination
  • Pulse mode helps to locate faults under high ambient light conditions

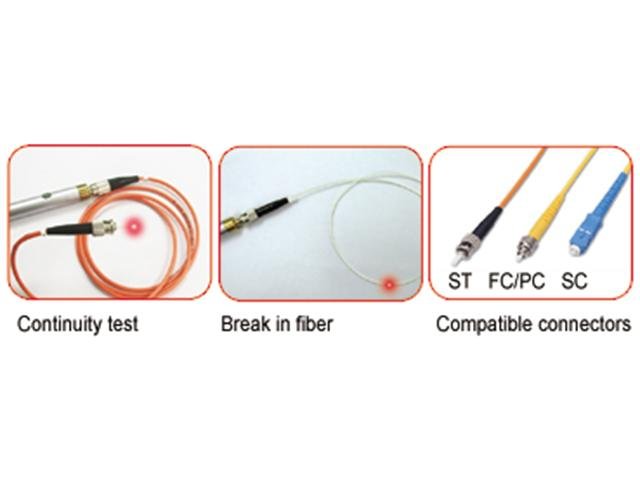

  • Support 2.5mm connectors (for PC/FC/SC/ST)
  • The button switch permits easy one handed operation
  • Handy, pocket pen design
  • 2 AAA-size alkaline batteries provide 50 hours of continuous operation

Specification

  • Materials
    • Body : Copper
    • Laser Class : Class 3A laser diode
    • Nominal Wavelength : 650nm ± 10nm
    • Operating Temp. : 0 ~ 40°C
    • Storage Temp. : 0 ~ 50°C
    • Dimensions Length : Length 160 ± 2mm, Diameter 13.5mm
    • Batteries : 2 x AAA (Not Included)
  • Package

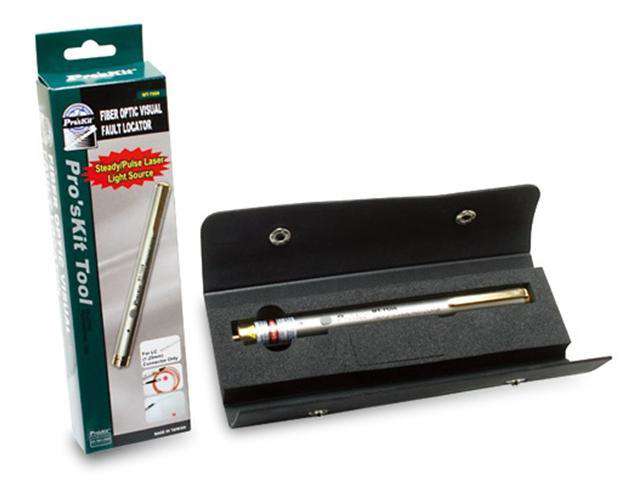

    • Individual Packing : Color Box with Black EVA Inner Box
