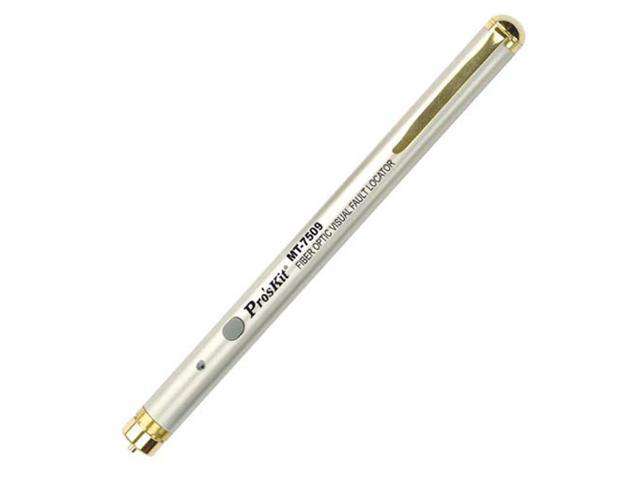

PRK MT-7509

• Simple, versatile, and user-friendly design
• Rugged, compact, and splash proof copper housing
• Three operation modes available: “CW” (Continuous wave output), “Pulse” and “Off” modes

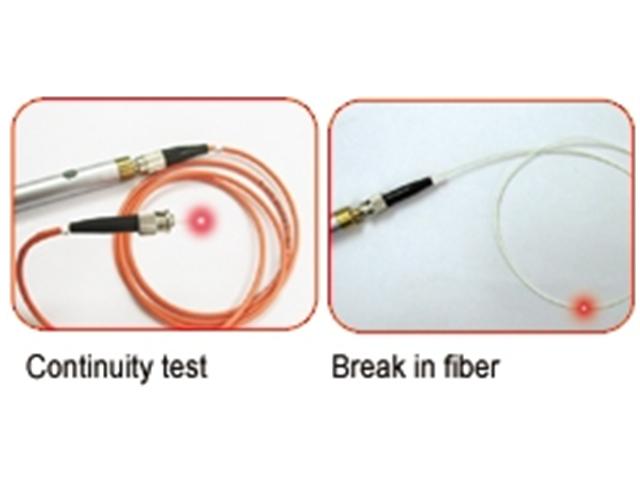

• Continuous wave output mode (CW) for steady fault illumination
• Pulse mode helps to locate faults under high ambient light conditions
• Support LC 1.25mm connectors
• The button switch permits easy one handed operation
• Handy, pocket pen design
• 2 AAA-size alkaline batteries provide 50 hours of continuous operation

• Materials
  • Body : Copper
  • Laser Class : Class 3A laser diode
  • Nominal Wavelength : 650nm ± 10nm
  • Operating Temp. : 0 ~ 40°C
  • Storage Temp. : 0 ~ 50°C
  • Dimensions Length : Length 160 ± 2mm, Diameter 13.5mm
  • Batteries : 2 x AAA (Not Included)
• Package
  • Individual Packing : Color Box with Black EVA Inner Box

Datasheet Download
