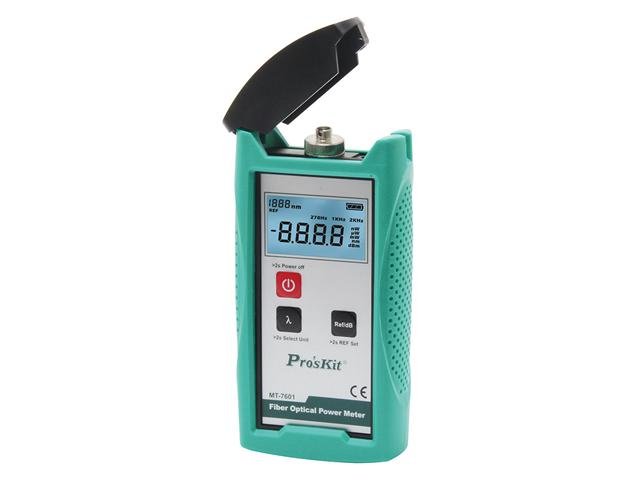

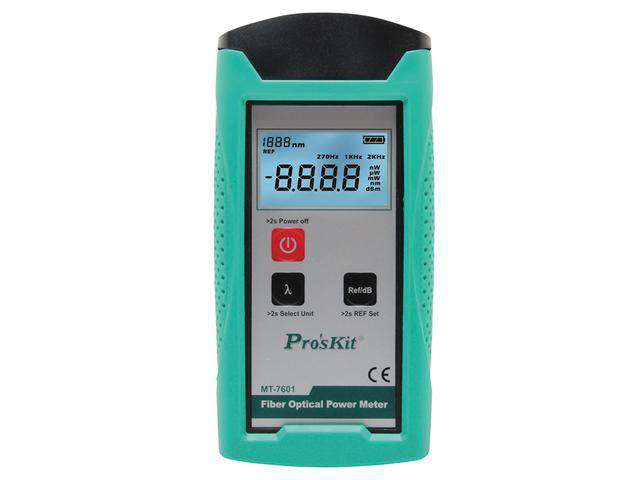

PRK MT-7601

An essential Fiber Test instrument used for absolute optical power measurement as well as fiber optic relative loss measurement. Easy to use for Telecommunication networks & FTTx/FTTH applications

• Adapts to FC/SC/ST connectors (LC with optional adaptor)
• Automatically powers off after approx. 10 minutes of no operation
• Multi Wavelength : 850nm/1300nm/1310nm/1490nm/1550nm/1625nm
• Comfortable LCD backlight display for operation in the dark
• Can store the current laser source as a new reference value
• Additional shock-proof cover & pouch bag

• Detector Type : Indium Gallium Arsenide
• Optical Connector : FC/SC/ST & 2.5mm Universal
• Calibrated Wavelengths : 850, 1300, 1310, 1490, 1550 and 1625
• Measurement Range : +6 ~ -70 dBm
• Accuracy :
• • (1550nm,1310nm)±0.2dB
  • (1490nm,1625nm)±0.3dB
  • (850nm,1300nm)±0.4dB
• Power Measurement Linearity : ±2.0%
• Display Resolution :
• • +6~-60dBm : 0.01 dB
  • -60~-70dBm :0.1 dB
• Power Display Units : dBm,mW,μW,nW
• Reference Comparison Value : Yes
• Modulation Detection : 270Hz,1KHz,2KHz (850,1300,1310,1490,1550,1625)
• Operation Voice Prompts : Yes
• Backlight : LED
• Automatic Power Off : 10 minutes (Can be cancelled)
• Low Battery Warning : Low battery energy
• Body Protected : Yes
• Battery Life : > 160 hours
• Operating Temperature : -10 ~ 60°C at <90%
• Storage Temperature : -20 ~ 70°C at <90%
• Power source : AA/LR6 1.5V×2 pcs
• Size : 165x80x35 (mm)
• Weight : 180g
• Optional Accessory : LC adaptor (5MT-7601-LC)
