Pro'sKit PK-2035M is a set of 9 tools and accessories for installation, connection, testing and maintenance of solar panels and photovoltaic systems. It contains everything necessary for cutting and stripping cables, crimping contacts, assembling and disassembling PV connectors, tightening fasteners and checking the main electrical parameters of solar panels.

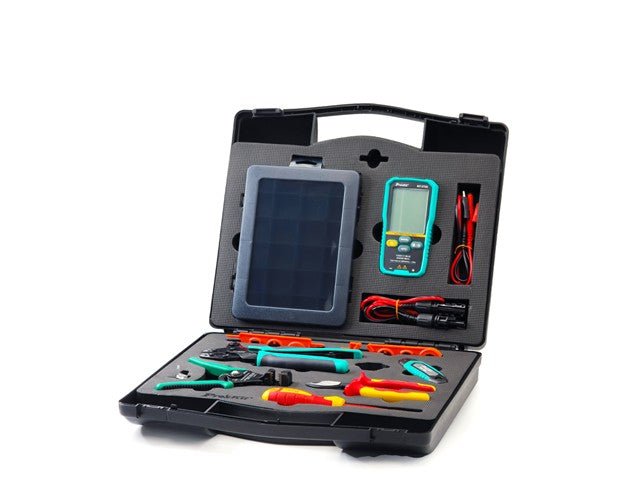

The kit includes CP-388 solar panel crimper, CP-248 automatic solar cable stripper, SR-V206 dielectric cable cutter, SD-810-P2 VDE insulated screwdriver, 9HW-S5P02 solar connector wrench set, HW-122M hex wrench set, MT-5705 solar panel parameter tester and cassette holder SB-6011. The kit also includes a matrix 9CP-3880 for crimping contacts with a closed cylindrical sleeve. Together, these tools ensure the preparation of solar cables, installation of connectors, measurement of PV panel parameters and execution of fastening work.

The set is suitable for professional installation and maintenance of photovoltaic systems on roofs, solar power plants and other objects.

• Tools for cutting and stripping cables, crimping contacts, mounting and dismounting connectors, tightening fasteners and testing solar panel parameters

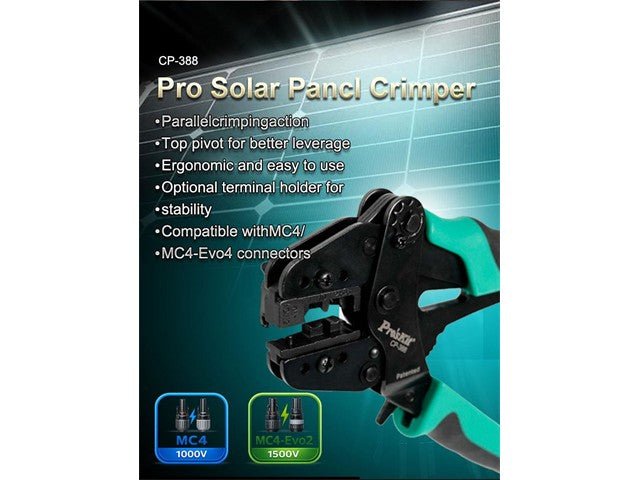

• Crimper CP-388 : parallel movement of jaws provides uniform pressure during crimping; the design with the upper hinge provides increased crimping force and reduces the strain on the hands
  • Crimp range: 8-14 AWG / 2.5-10 mm²
  • Compatibility: MC4 and MC4-Evo2 contacts
• Matrix 9CP-3880 O-shaped profile for crimping contacts with a closed sleeve
• Stripper CP-248 : Automatic solar cable stripper 8-14 AWG / 2.5-10 mm²
• The sharp CP-248 blade made of SK5 steel provides a clean stripping of insulation and reduces the risk of conductor damage
• Dielectric cable cutter SR-V206 : cable cutter with VDE 1000 V insulation, length 150 mm, maximum cross-section 22 mm²
• SD-810-P2 screwdriver : VDE 1000 V insulated Phillips screwdriver, PH2, Ø6.0 × 100 mm
• Set 9HW-S5P02 : a set of keys for assembly and disassembly of common PV connectors
• Set of hex keys HW-122M : a complex set of eight metric hex keys ranging in size from 1.5 to 8 mm

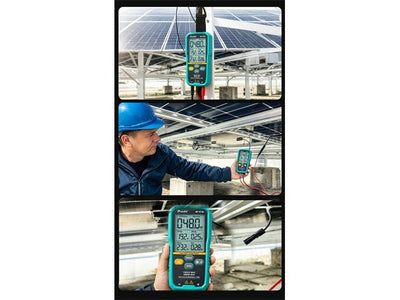

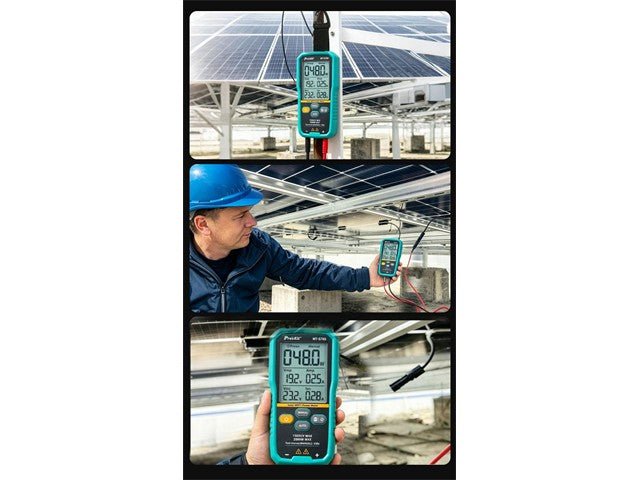

• Solar panel parameters tester MT-5705 : measurement of power up to 2000 W, constant voltage 150 V DC and current up to 45 A; displays five main parameters: Pmax, Vmp, Imp, Voc and Isc; supports automatic and manual testing modes
• Cassette box SB-6011 : removable partitions allow you to flexibly organize the internal space; dimensions 225 mm × 180 mm × 40 mm

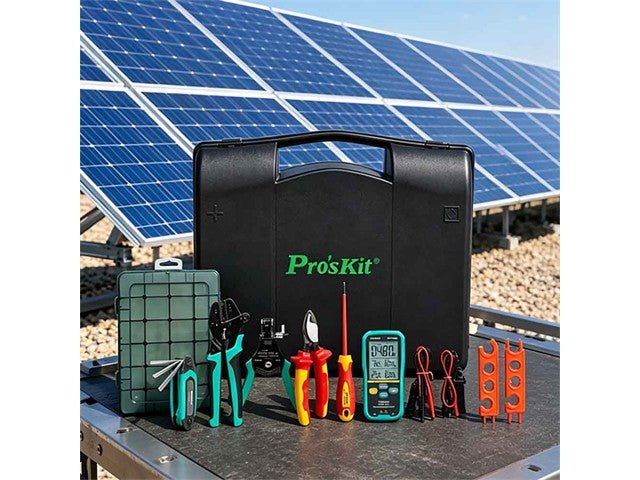

Equipment

• Crimper Pro'sKit CP-388 for Solar connectors — 1 pc.
• Stripper with reverse mechanism Pro'sKit CP-248 — 1 pc.
• Dielectric cutter for Pro'sKit SR-V206 cable — 1 pc.
• Dielectric Phillips screwdriver Pro'sKit SD-810-P2 — 1 pc.
• Set of keys for solar connectors Pro'sKit 9HW-S5P02 — 1 set.
• Set of hex keys Pro'sKit HW-122M — 1 set.
• Pro'sKit 9CP-3880 O-profile die for contacts with a closed sleeve — 1 pc.
• Solar panel parameters tester Pro'sKit MT-5705 — 1 pc.
• Cassette holder Pro'sKit SB-6011 — 1 pc.
